Oil filter, also known as oil filter or oil separator, is an important part of screw air compressor. It is a device used to filter oil. It is a fragile and consumable product.
The material of the air compressor oil filter is filter paper. The service life of the air compressor with the filter is usually 1500-2000 hours. According to the different adjustment of the environmental condition, the oil filter jam alarm set value is generally 1.0-1.4bar.
The function of the air compressor oil filter is to filter the metal particles and impurities in the lubricating oil of the air compressor to ensure the cleanliness of the oil circulation system and protect the safe operation of the main engine.
Product features
1.Keep oil clean by capturing contaminants that cause engine damage.
2.Include heavy duty components that are built to perform, built to last.
3.Deliver essential engine protection for maximum cold flow performance.
4.Removes contaminants from the lube oil system
5.Traps abrasive contaminants in the lube oil to keep them from entering the lubrication system
6.Prevents engine damage from dirt and particles in the oil
Product parameters

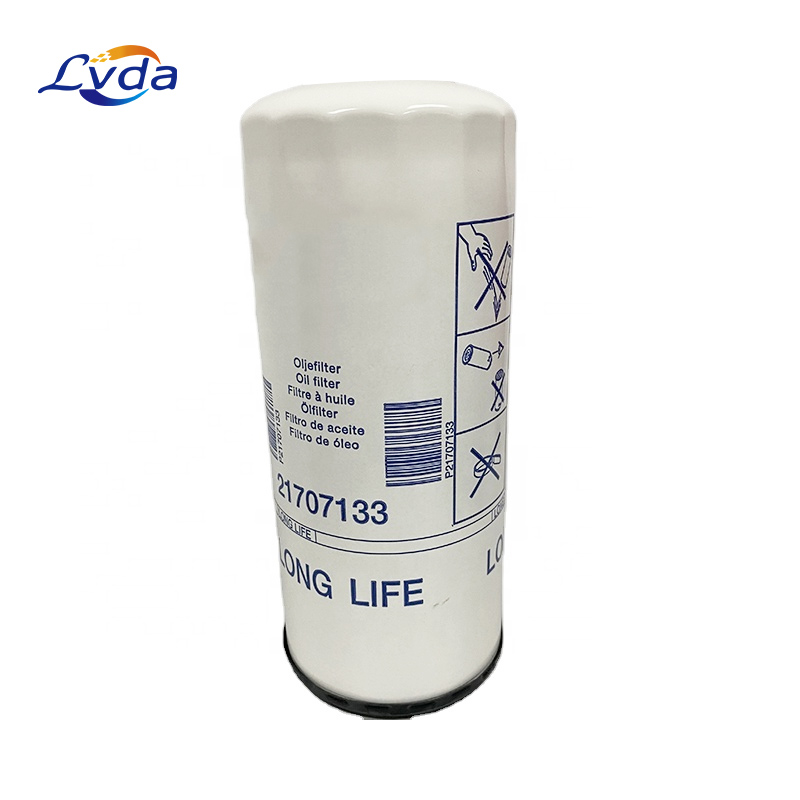

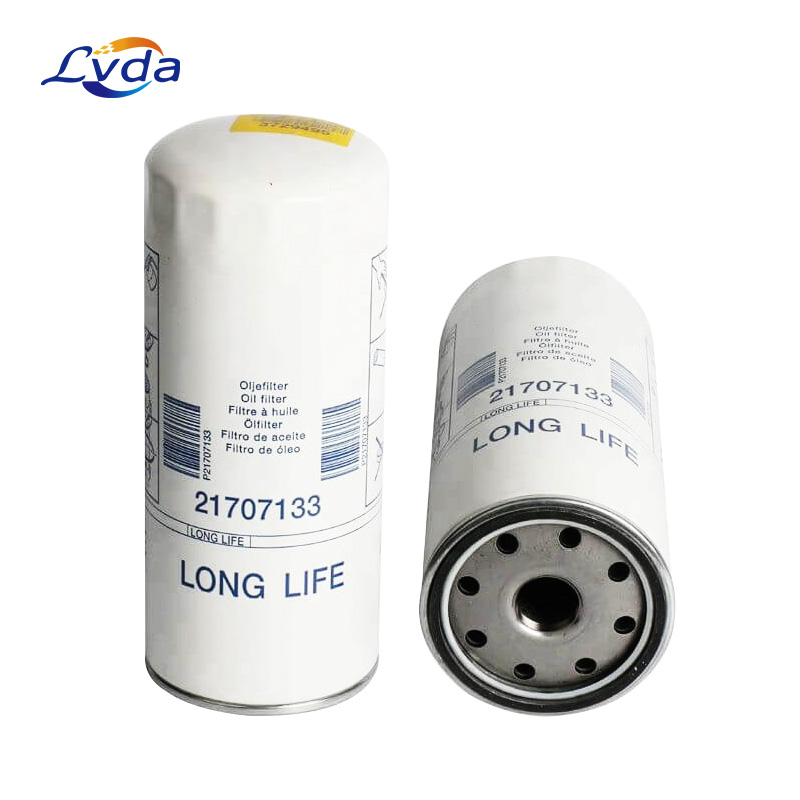

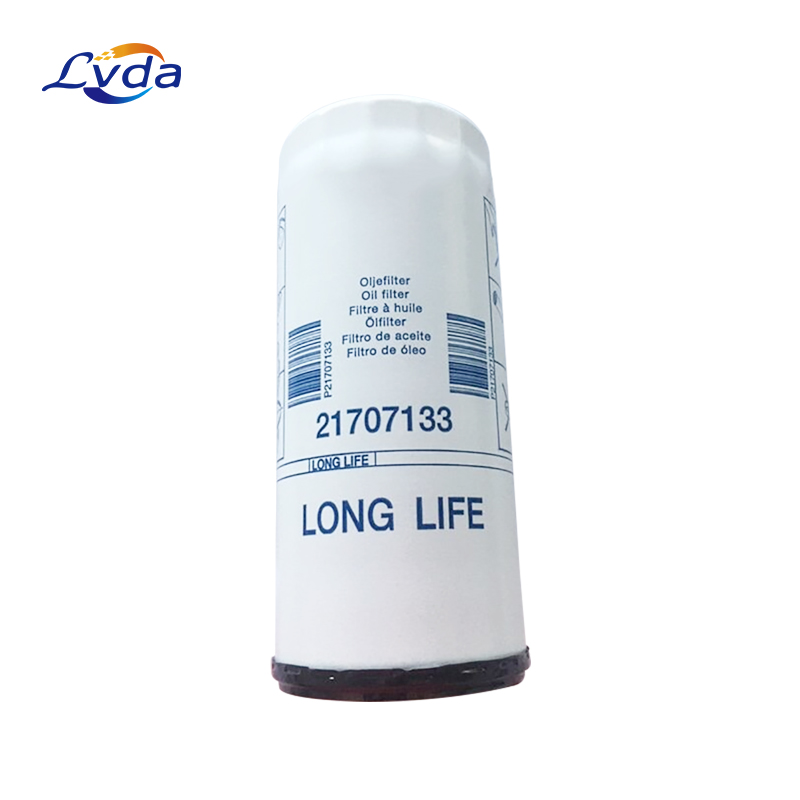

Model | 21707133 |
Place of Origin | Henan, China |
Brand Name | LVDA |
Life span | 2000- 4000h |
Certificate | ISO9001:2008 |
Quality | 100% Tested |
Outer Diameter | 108 mm (4.25 inch) |
Thread Size | 1 1/8-16 UN |
Length | 262 mm (10.31 inch) |
Gasket OD | 99 mm (3.90 inch) |
Gasket ID | 90 mm (3.54 inch) |
Efficiency 99% | 21 micron |
Media Type | Cellulose |
Collapse Burst | 10.3 bar (149 psi) |
Type | Full-Flow |
Style | Spin-On |
Product application
1.Automotive
2.Heavy-duty on-highway transportation
3.Commercial trucks and buses
4.Agriculture
5.Construction
6.Industrial
7.Marine
8.Mining
9.Oil & Gas
10.Power Generation
