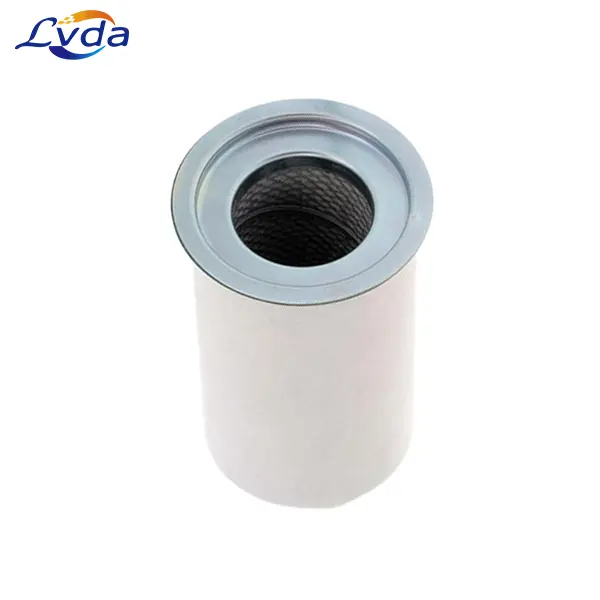

98262-197 Air/Oil Separator

Product Details

The 98262-197 is an air/oil separator filter element used in rotary screw air compressors. It is a replacement or aftermarket part that meets or exceeds OEM specifications.

Ensure To Meet Original Maunfacturing Standard

Direct Replace & Product Compatibility 100%

Filtration Efficiency: 99.99%

Micron Rating: 0.3 μm (micrometers)

Filter Media: Fiberglass and microglass media with urethane end seals

Physical Dimensions:Outside Diameter (OD): ~171.45 mm (Flange OD: ~200.15 mm)

Inside Diameter (ID): ~107.95 mm

Height (H): ~304.8 mm

Performance:

Operating Pressure: ~0.69 MPa (6.89 bar)

Flow Capacity: ~4.08 \(m^{3}/min\)

Residual Oil Content: < 3 ppm

Service Life: Approx. 3,500 to 6,000 hours (depending on operating conditions)
