Product Details
Air compressor air purification equipment is vital for the removal of system contamination
Air purification equipment is to remove air dash to keep compressor air clearance.
Tiny dust is absorbed into filter paper.More deepness the fold is, the longer working life the filter is .Filter paper is with high efficiency ,large filtration area , low resistance and heavy dust-holding capacity, it can be used in ambient temperature, common temperature, little of acid, alkali and organic solvents
Specifications PD Series Replacement: The PD range of high efficiency coalescing filters, remove liquid water and aerosols to 0.01 mg/m_ (0.01 ppm) and particles down to 0.01micron. Coalescing (Pre-Filter) Filters Often called the pre-filter since it is placed on the air line just prior to the air dryer, a coalescing filter removes oil, particles and moisture before it can come in contact with the desiccant in the dryer and ruin it.
Product features
1.Good precision filter permeability.
Filter using the United States strong hydrophobic oil-thin fibrous filter, and use good permeability and high strength of the skeleton, reducing the resistance caused by crossing.
2.Good precision filter efficiency.
Filter with a German fine-hole sponge, can effectively prevent high-speed air entrainment of oil and water to go down the small oil droplets gathered to the bottom of the filter sponge, and row to the bottom of the filter container.
3. Good precision filter airtight.
The combination of filter and filter shell with a reliable seal ring to ensure that air is not short-circuit, to prevent impurities without going through the filter directly into the downstream.
4. Good precision filter corrosion resistance
The filter is made of corrosion-resistant reinforced nylon end caps and anti-corrosive filter cartridges for use in harsh conditions.
Product parameters

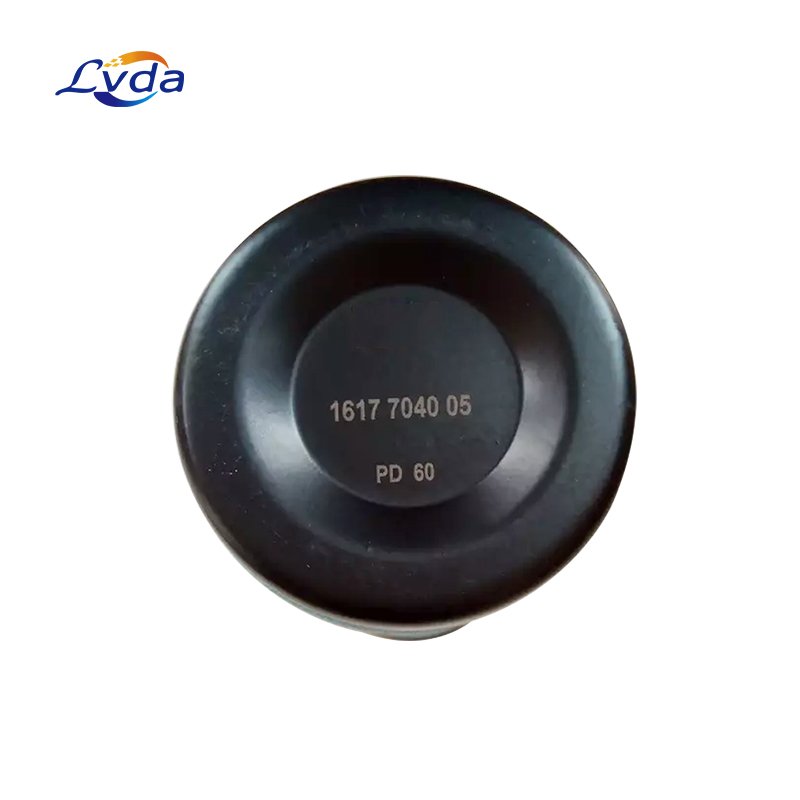

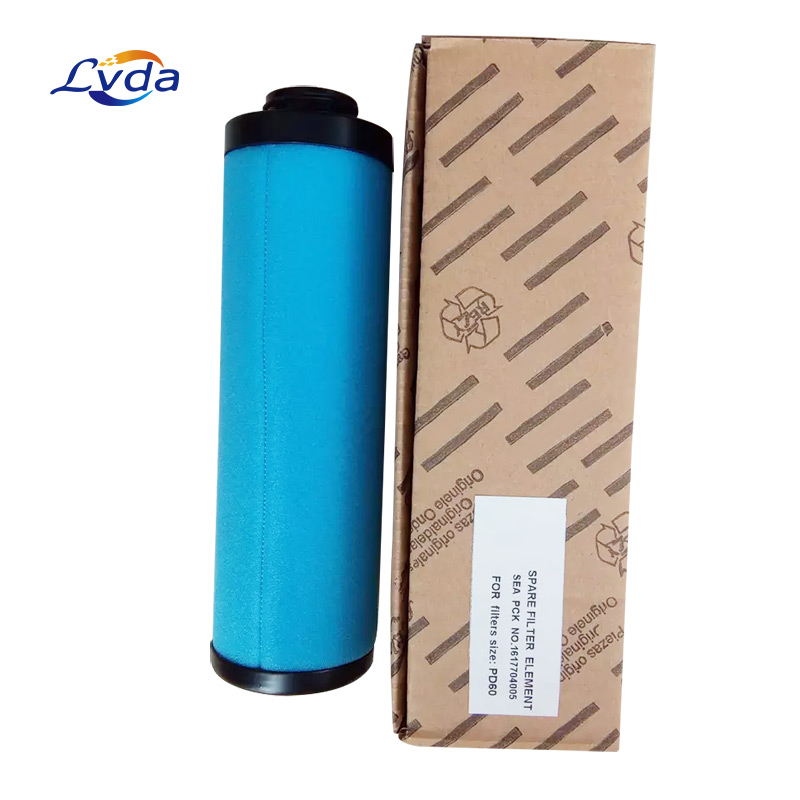

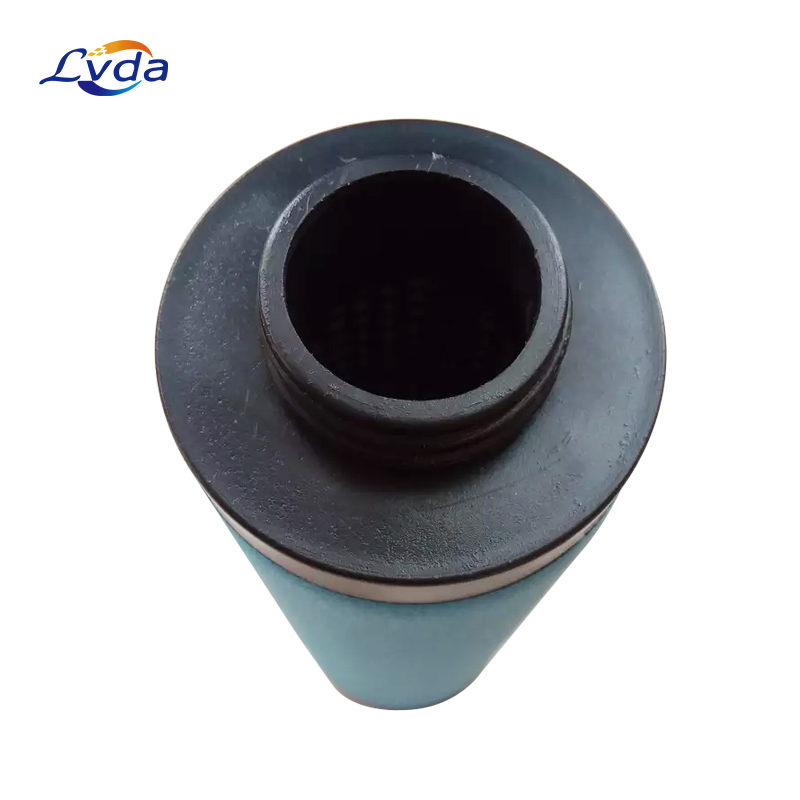

Model: | PD60 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Material: | Glass Fiber Filter Paper |
Application: | AIR FILTER |
Maximum Oil Carryover | 0.01 ppm Oil Removal |
Micron Rating | 0.01Micron |
Outer Diameter | 61 mm |
Inner Diameter | 26 mm |
Length | 207.5 mm |
Media Type | Polyester Needle Felt |
Flow Direction | IN-OUT |
Seal | Nitrile |
Temperature Range | +1 - +60°C |
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Model | Flow Rate NM3/min |
9 | 0.5 |
17 | 1 |
32 | 2 |
44 | 2.6 |
60 | 3.6 |
120 | 7.2 |
145 |
|
150 | 9 |
175 | 10.5 |
260 | 15.6 |
390 | 23.4 |
520 | 31.2 |
780 |
|
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
