Specifications DD Series Replacement: The DD range of coalescing filters for general-purpose protection removes liquid water and oil aerosols to 0.1 mg/m_ (0.1 ppm) and particles down to1 micron. Particulate (After-Filter) Filters A particulate filter, also known as an after-filter, is usually located just after the desiccant air dryer to remove harmful liquid oil, water condensate, pipe scale,dirt and rust from your compressed air system. This helps prevents contaminants & corrosive damage to compressed air equipment and finished products. If the particulate filter gets soiled more frequently than what is typical for your environment, it may be time to replace the desiccant.
Grade DD+
Coalescing filters for general purpose protection, removing solid particles, liquid water and oil aerosol.
For optimum filtration, a DD+ filter should be preceded by a water separator.
Grade PD+
High-efficiency coalescing filters, removing solid particles, liquid water and oil aerosol.
For optimum filtration, a PD+ filter should be preceded by a DD+ filter at all times.
Grade QD+
Activated carbon filter for removal of oil vapor and hydrocarbon odors with a maximum remaining oil content of 0.003 mg/m³ (0.003 ppm). 1,000 hour lifetime.
Product features
1.Good precision filter permeability.
Filter using the United States strong hydrophobic oil-thin fibrous filter, and use good permeability and high strength of the skeleton, reducing the resistance caused by crossing.
2.Good precision filter efficiency.
Filter with a German fine-hole sponge, can effectively prevent high-speed air entrainment of oil and water to go down the small oil droplets gathered to the bottom of the filter sponge, and row to the bottom of the filter container.
3. Good precision filter airtight.
The combination of filter and filter shell with a reliable seal ring to ensure that air is not short-circuit, to prevent impurities without going through the filter directly into the downstream.
4. Good precision filter corrosion resistance
The filter is made of corrosion-resistant reinforced nylon end caps and anti-corrosive filter cartridges for use in harsh conditions.
Product parameters

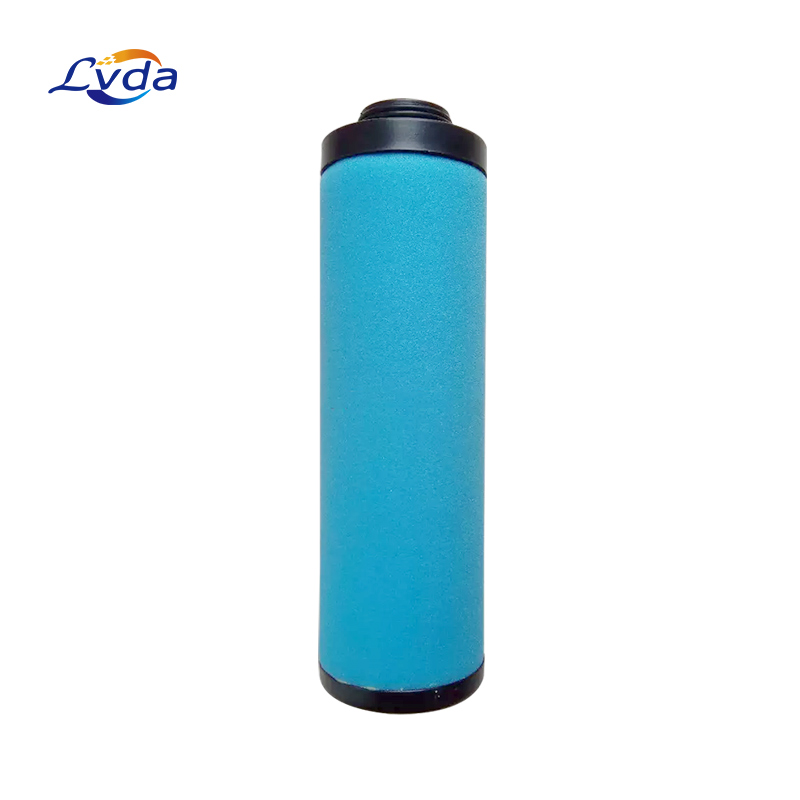

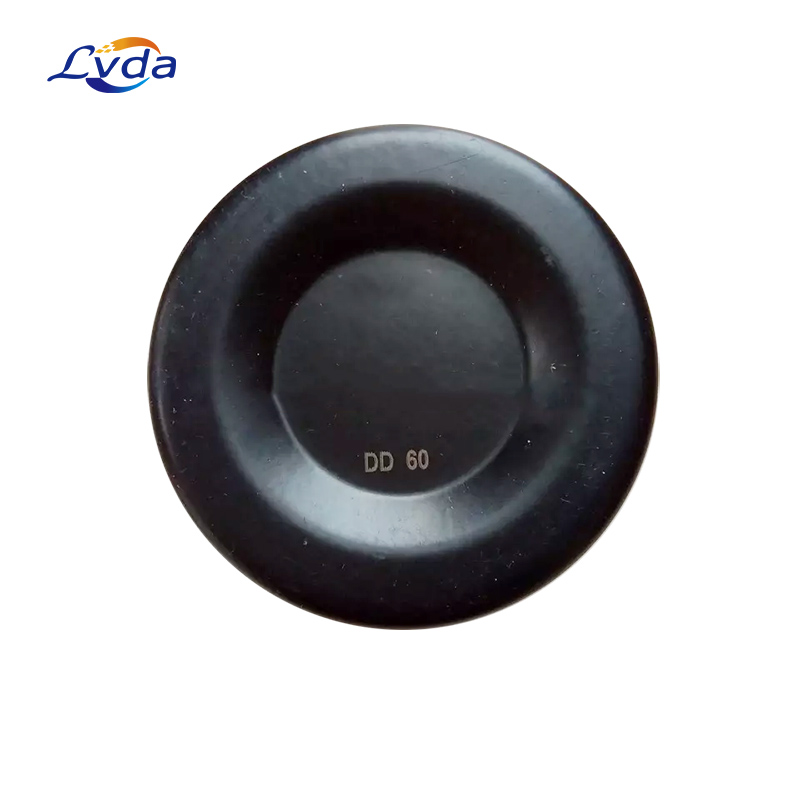

Model: | DD60 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Material: | Glass Fiber Filter Paper |
Application: | AIR FILTER |
Maximum Oil Carryover | 0.1 ppm Oil Removal |
Micron Rating | 1 Micron |
Outer Diameter | 61 mm |
Inner Diameter | 26 mm |
Length | 166.7 mm |
Media Type | Polyester Needle Felt |
Flow Direction | IN-OUT |
Seal | Nitrile |
Temperature Range | +1 - +60°C |
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Product application
1．Chemical and petrochemical industry
2．Pharmaceutical industry
3．Breathing air
4．Prefiltration of sterile filters
5．Filling machines
6．Food & beverage industry
7．Packing machines
8．Process industry
9．Backhoe loaders
10．Excavators
11．Tractors
12．Combine harvesters
13．Sugarcane harvesters
14．Commercial vehicles
15．Forklift etc
