Product Details
Grade DD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.
Grade PD - High Efficiency Oil Removal Filtration
Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).
Grade QD - Activated Carbon Filtration
Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).
Grade DDp - General Purpose Dust Filtration
Dust particle removal down to 1 micron.
.
UD+ SERIES
Two-in-one oil coalescing filters with supreme energy savings
UD+ filters efficiently reduce oil aerosol, wet dust and water drops in your compressed air stream to protect your investment, equipment and processes. The UD+ combines two filtration steps (DD+ and PD+) into one, a unique technology to meet the high-quality requirements of diverse applications and provide ultimate energy savings.
Product features
1.40% energy saving
Nautilus filter technology reduces pressure drop by 40% and improves energy efficiency by 40%.
2. Small floor area
The two in one filter concept reduces the installation space and installation complexity, making the filter particularly suitable for space constrained applications.
3. Cost saving
UD+filters provide significant cost savings.
4. Pure air
Thanks to the design of UD+filter and the medium used, the air purity obtained is the same as that obtained by using two traditional filters.
5. No risk of filter medium rupture
As the filter medium surrounds the filter, Nautilus Nautilus filter technology has no risk of rupture of the filter medium.
6.Energy-efficient two-in-one filter
Our UD+combined filter can effectively reduce oil suspended solids, wet dust and water droplets in the compressed air stream, providing protection for your investment, equipment and processes. UD+combines two filtering steps (DD+and PD+) into one. Its unique technology meets the high quality requirements of many applications, and significantly saves energy.
Product parameters
Model: | UD310 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Type: | In-line Compressed Air Filter |
Material: | USA HV fiberglass,glassfiber, filter paper, activated carbon |

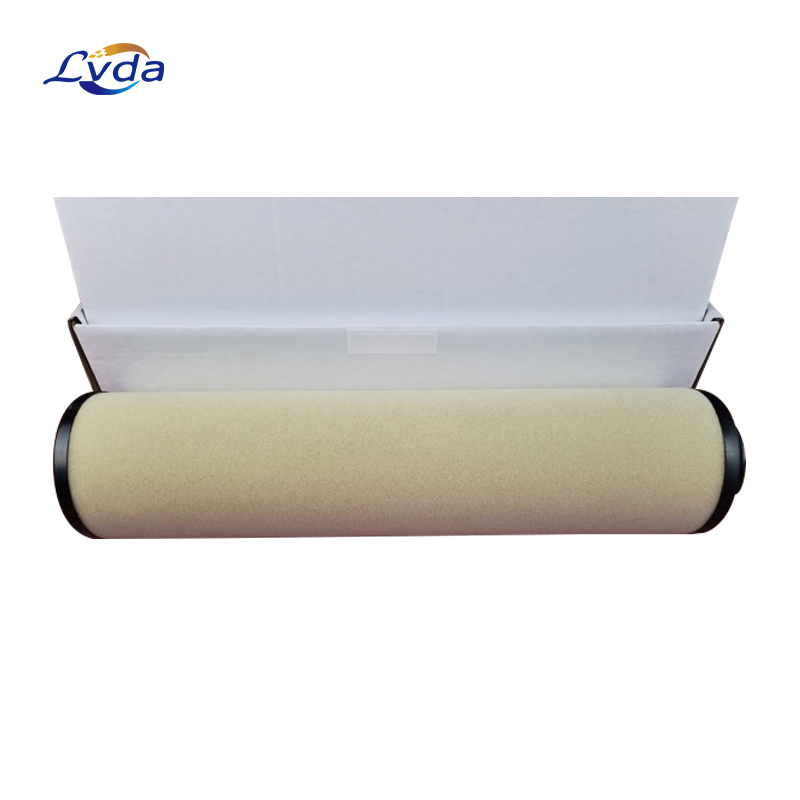

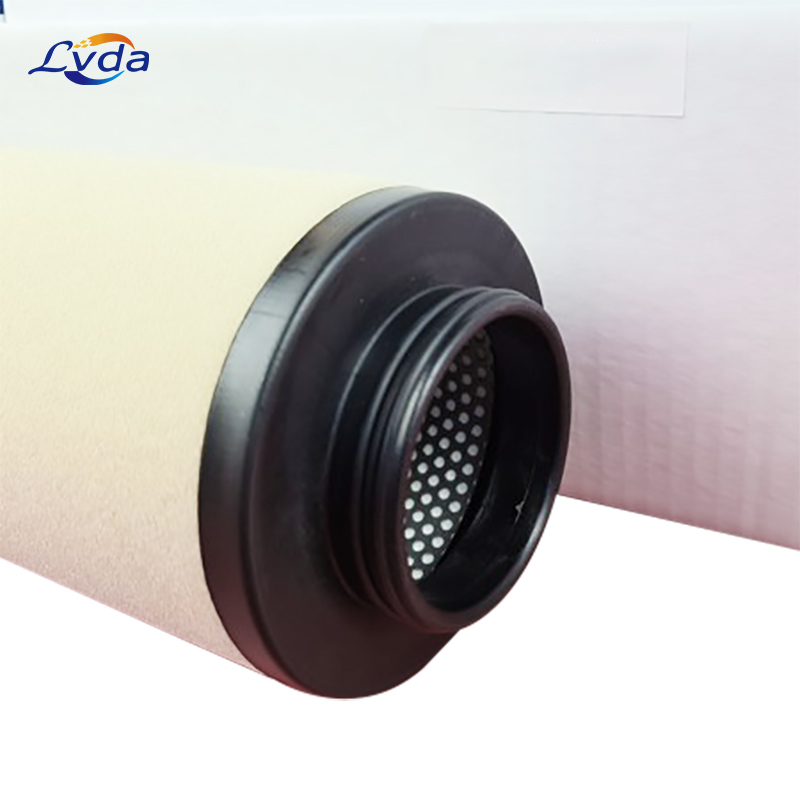

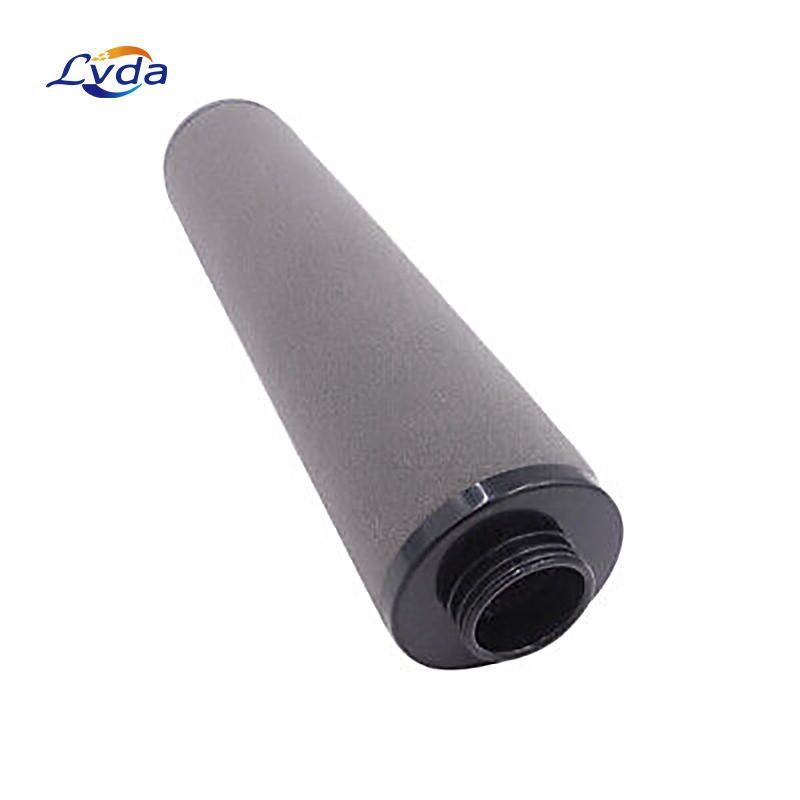

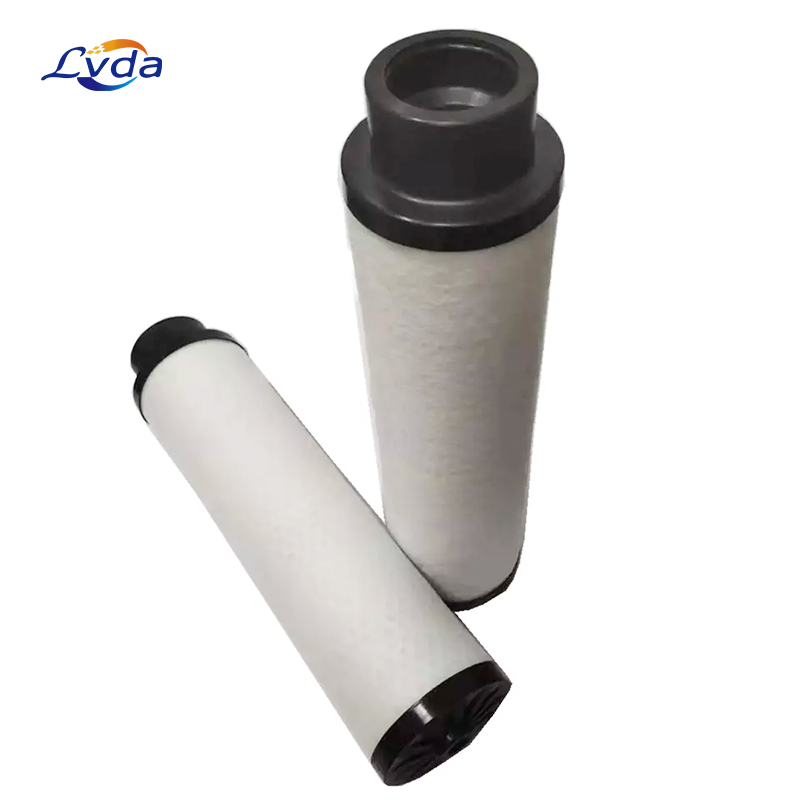

Product name: | Compressed Air Filter Element |
Filter Precision | 0.1μm |
Life span | about 5600 hours |
Certificate: | ISO9001:2015 |
Weight: | 0.4kg |
Pressure: | 7/8,5/10/12bar |
Package size: | 10*10*35CM |
Efficiency: | 99.99% |
FILTER SIZE
UD+ | Nominal capacity | Reference pressure | Maximum
pressure | Connections | Dimensions | Free space for cartridge replacement | Weight |
A | B | C | D |
l/s | cfm | bar(e) | psig | bar(e) | psig | in | mm | in | mm | in | mm | in | mm | in | kg | lbs |
310+ | 310 | 657 | 7 | 102 | 16 | 232 | 2&2-1/2 | 179 | 7.1 | 121 | 4.8 | 689 | 271 | 150 | 5.9 | 6.9 | 15.2 |
425+ | 425 | 901 | 7 | 102 | 16 | 232 | 3 | 210 | 8.3 | 128 | 5.1 | 791 | 31.1 | 200 | 7.9 | 11 | 24.2 |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms, Restaurant,
8.Home Use,
9.Retail,
10.Food Shop,
11.Printing Shops,
12.Construction works ,
13.Energy & Mining,
14.Food & Beverage Shops,
15.Advertising Company
