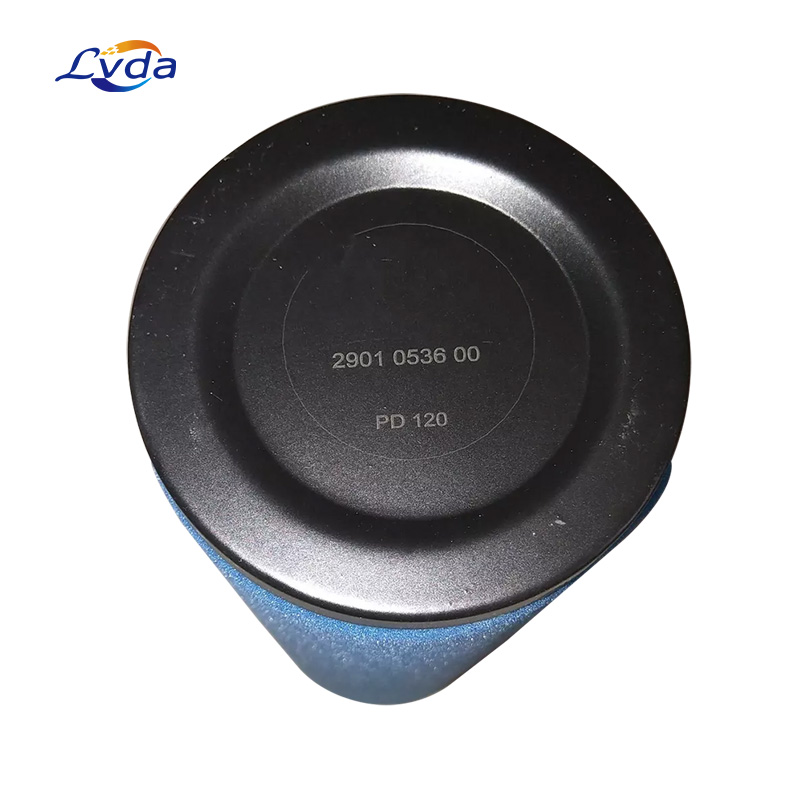

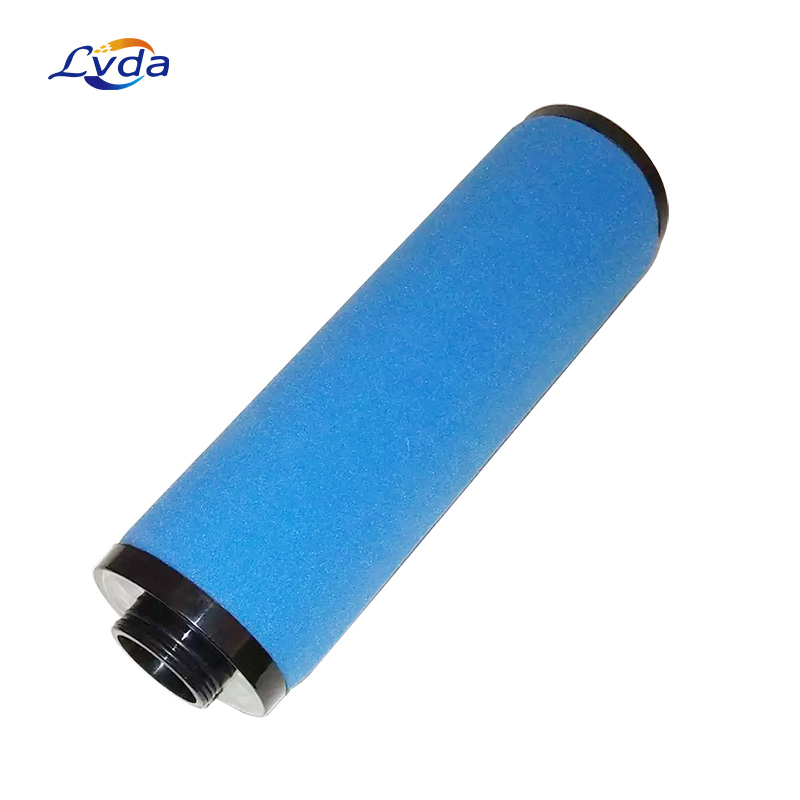

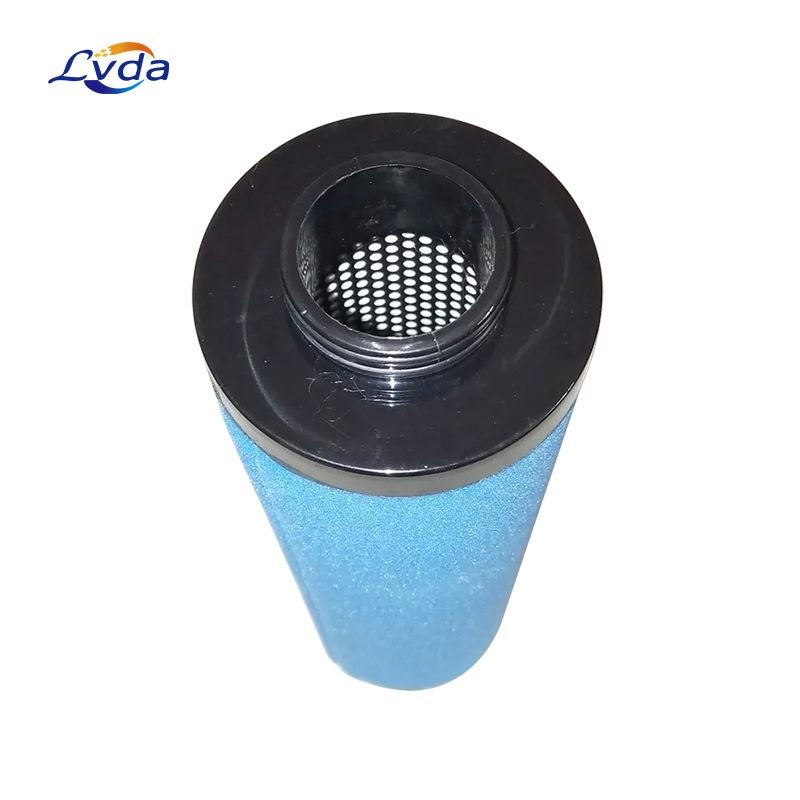

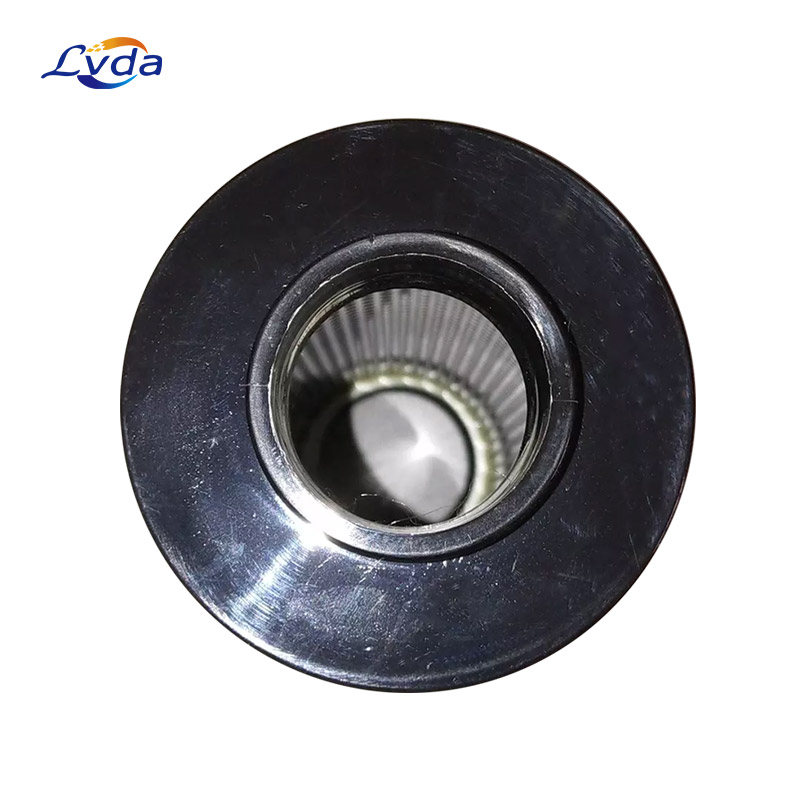

Product Details
Inline filter
- main pipeline filter
Protect the system as much as possible after the cooler in the air compressor or after the freeze dryer and other filters.
- air line filter
The apparatus removes moisture and particles in the form of tools, machinery, motors, cylinders, and a class of ultra high efficiency oil removal filters, or adsorption dryers.
- high efficient filter for eliminating oil
Often used upstream of an adsorption dryer or downstream of a refrigeration dryer to ensure that the air used in the system is completely oil-free.
Compressed air leaving your air compressor may have particulate, oil mist or other contaminants present. Even air downstream of compressed air dryers or air receivers may encounter particulate or develop condensate within piping before the point of use. Different use requirements and different contaminants require different filters. It is recommended that all compressed air systems have appropriate filtration installed before point of use. Atlas Copco has developed specific filter grades to address the various contaminants found in compressed air systems. Replacement compressed air filters supplied by LVDA provide the correct filtration media to ensure that your Atlas Copco filter assembly delivers clean air to your point of use. Atlas Copco Part Number 2901053600 FILTER KIT PD130+.
Product features
1.Excellent quality
2. Competitive price
3. Fast delivery time
4. Strong service team
5. More types choice
Product parameters
Differential Pressure |
50 mbar |
Filtration Media (FILT-MED) |
Borosilicate micro glass fibre 0.1 µm 2 2 |
Body Height (H-0) |
288 mm |
Height-1 (H-1) |
10 mm |
Total Height (H-TOTAL) |
298 mm |
Maximum Working Temperature |
65 °C |
Minimum Working temperature |
1.5 °C |
Product Net Weight (WEIGHT) |
0.5 Kg |
Inner Diameter 1 (Ø 1 IN) |
38 mm |
Outer Diameter (Ø OUT) |
86 mm |
Stat. HS-Code |
84149000 |
Model: | 2901053600 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Type: | line filter element |
Material: | Fiberglass,wire mesh etc. |
Product name: | Compressed Air Filter Element |
Filter Precision | 0.01μm |
Life span | 6000- 8000h |
Certificate: | ISO9001:2015 |
Weight: | 1kg |
Pressure: | 7/8,5/10/12bar |
Package size: | 11*11*40 |
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms, Restaurant,
8.Home Use,
9.Retail,
10.Food Shop,
11.Printing Shops,
12.Construction works ,
13.Energy & Mining,
14.Food & Beverage Shops,
15.Advertising Company
