Product Details

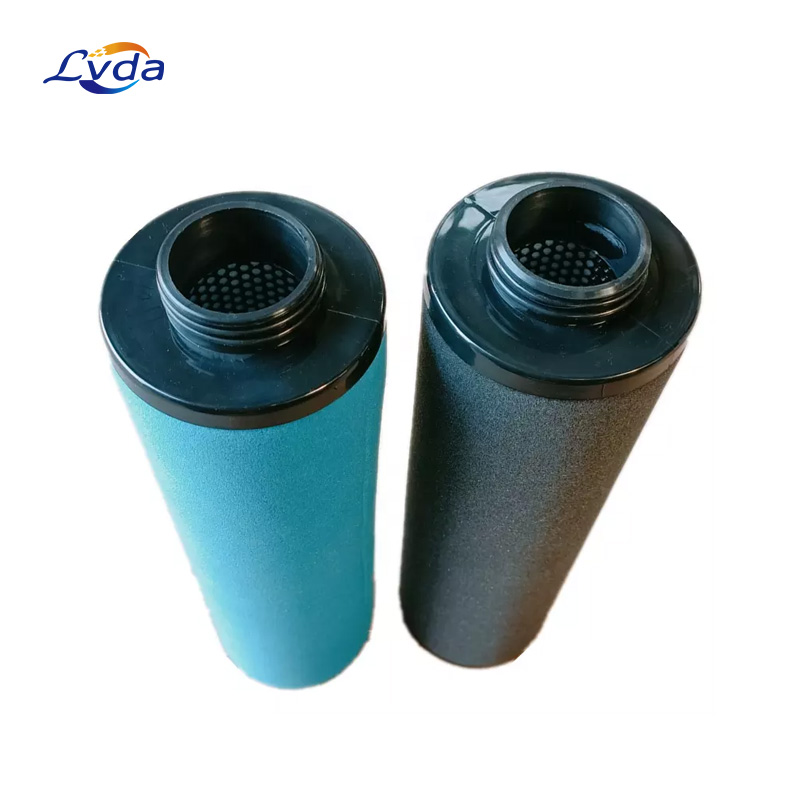

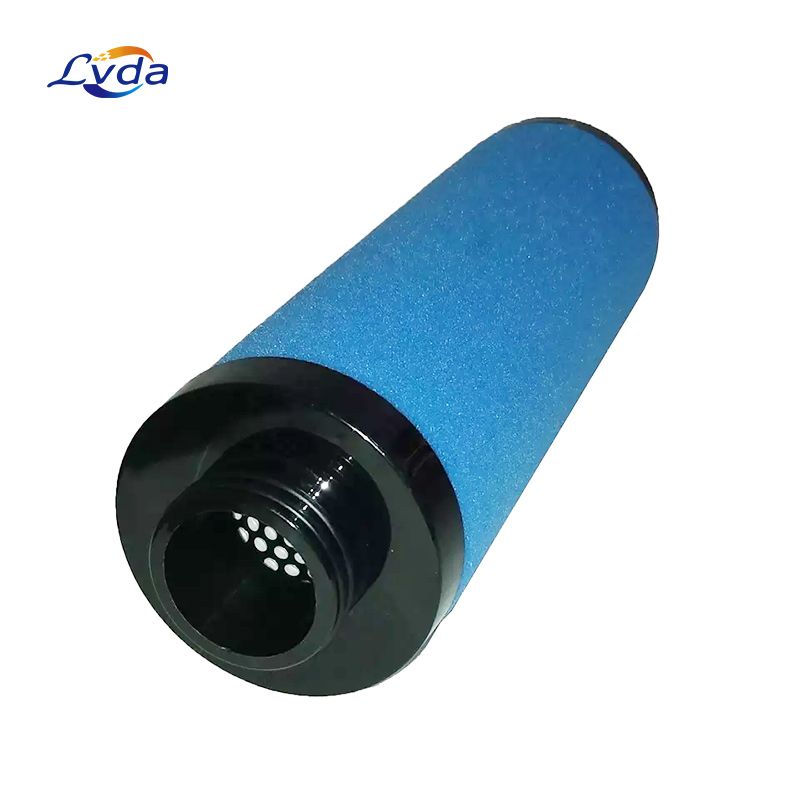

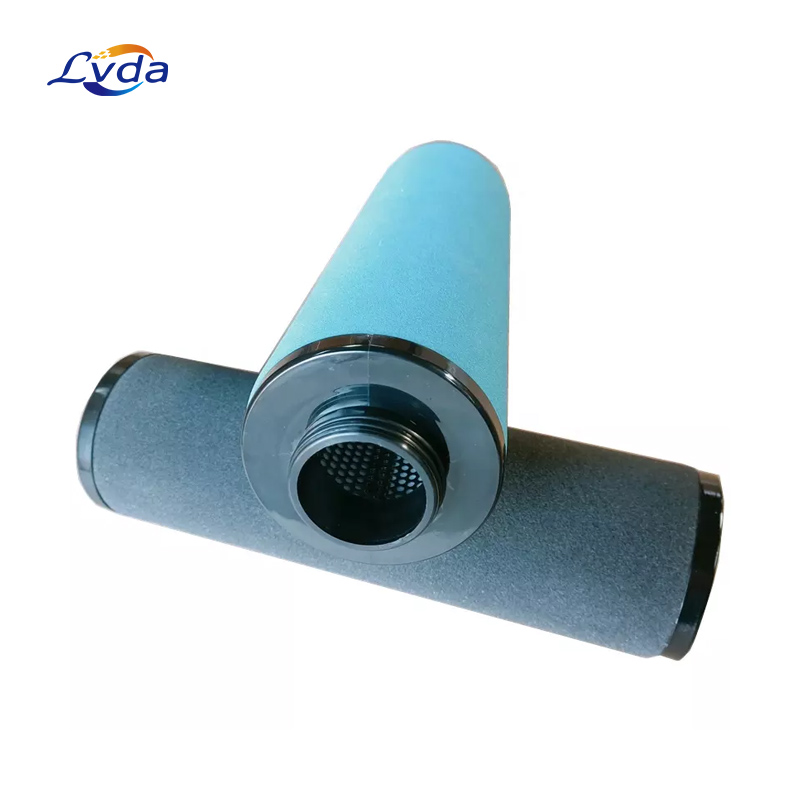

AIRFILTER
The air filter is an important part of the air intake system of the air compressor, which consists of an assembly of several air filter elements
FUNCTION
Its main function is to filter out the harmful impurity particles that will enter the air compressor screw,ensure sufficient and clean air to enter the air compressor, reduce the wear of the air compressor screw, bearing, cylinder liner,etc, and prolong the service life of the equipment.
The filtration efficiency is high, which can effectively ensure the reliable operation of the air compressor; The intake resistance is low, the intake resistance is small,so that sufficient air can be supplied.The ash storage capacity is strong, reduces the maintenance times of the air filter, and reduces the cost of use.
To ensure the highest standards, all LVDA products are subjected to rigorous quality control testing. The entire filter range is produced in-house, on the most advanced production lines, using the most stringent methods in the industry. You can rest assured at all times that strict certification and testing procedures are conducted to ensure our filtration products meet the highest standards.
The Line Filter Cartridges have different colors for the different filtration grades:
- Light Blue Foam for DD and DDp
- Grey Foam for PD and PDp
- No Foam for QD
Our ISO certification
LVDA filters have been fully tested and qualified according to the following ISO standards:
• ISO 8573-1:2010: Compressed air - Contaminants and purity classes
• ISO 8573-2:2007: Compressed air - Test method for oil aerosol content
• ISO 8573-4:2001: Compressed air - Test method for dust
• ISO 8573-5: 2001: Compressed air - Test method for oil vapor and organic solvent content
• ISO 12500-1:2007: Filters for compressed air -test methods - oil aerosols
• ISO 12500-2:2007: Filters for compressed air -test methods - oil vapors
• ISO 12500-3:2009: Filters for compressed air -test methods - particulates
Product features
1.Excellent quality
2. Competitive price
3. Fast delivery time
4. Strong service team
5. More types choice
Product parameters
Body Height (H-0) |
282 mm |
Height-1 (H-1) |
13 mm |
Total Height (H-TOTAL) |
295 mm |
Product Net Weight (WEIGHT) |
0.49 Kg |
Inner Diameter 1 (Ø 1 IN) |
39 mm |
Outer Diameter (Ø OUT) |
85 mm |
Stat. HS-Code |
84149000 |
Model: | 2901053500 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Type: | Air Filter |
Material: | Glassfiber,Stainless steel, Filter paper |
Product name: | Compressed Air Filter Element |
Filter Precision | 1μm |
Life span | 6000- 8000h |
Certificate: | ISO 9001:2000 |
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms, Restaurant,
8.Home Use,
9.Retail,
10.Food Shop,
11.Printing Shops,
12.Construction works ,
13.Energy & Mining,
14.Food & Beverage Shops,
15.Advertising Company
