Good Price Filter 1202626204 Atlas Copco Air Compressors Spare Part Efficient Core DD900F (1202 6262 04) alternative line filter air dryer element

Product Details

Grade DD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.

Grade PD - High Efficiency Oil Removal Filtration

Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).

Grade QD - Activated Carbon Filtration

Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).

Grade DDp - General Purpose Dust Filtration

Dust particle removal down to 1 micron.

LVDA filters have been fully tested and qualified according to the following ISO standards:

• ISO 8573-1:2010: Compressed air - Contaminants and purity classes

• ISO 8573-2:2007: Compressed air - Test method for oil aerosol content

• ISO 8573-4:2001: Compressed air - Test method for dust

• ISO 8573-5: 2001: Compressed air - Test method for oil vapor and organic solvent content

• ISO 12500-1:2007: Filters for compressed air -test methods - oil aerosols

• ISO 12500-2:2007: Filters for compressed air -test methods - oil vapors

• ISO 12500-3:2009: Filters for compressed air -test methods - particulates

Atlas Copco Line Filter Characteristics

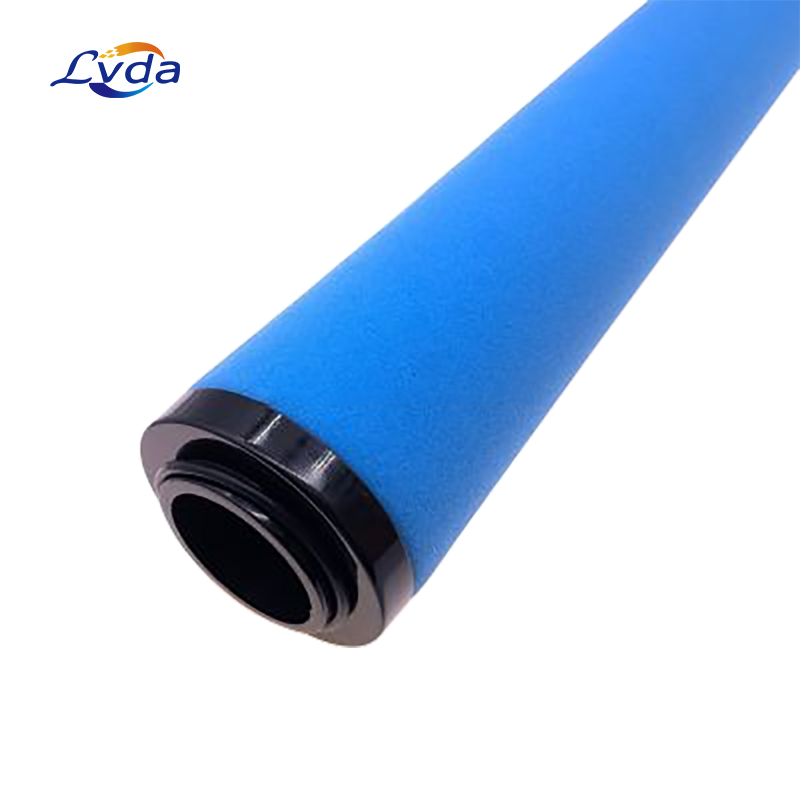

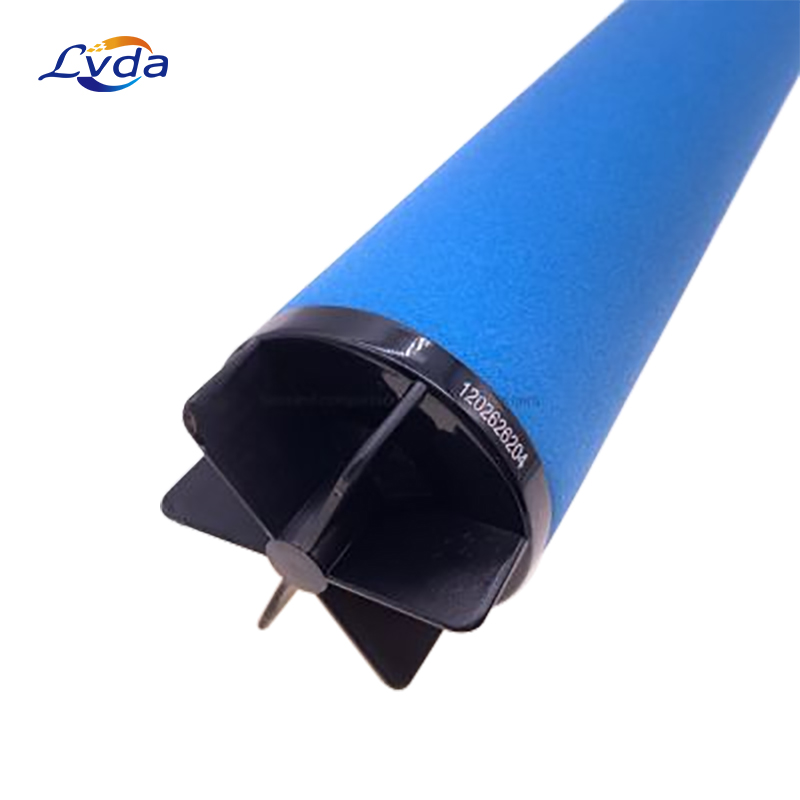

The Line Filter Cartridges have different colors for the different filtration grades:

- Light Blue Foam for DD and DDp

- Grey Foam for PD and PDp

- No Foam for QD

Product features

1.Product compatibility 100%

2.US imported raw materials (H&V) micro glass fiber media filter,

3.Effective cost of more than 8000 hours, reducing maintenance cost,

4.Ensure compliance with original manufacturing requirements standards, better separation and better air

5.The packaging can be customized according to your needs

Product parameters

Product application

1．Reverse Osmosis Pre-filtration

2．Desalination Pre-filtration

3．Cooling Tower Filtration

4．Chill Water Loop Filtration

5．Food & Beverage Filtration

6．Marine / Aquatic Filtration

7．Coolants

8．Bottled water

9．  Organic solvents

10．Municipal Drinking Water Filtration

11．Commercial/Residential Drinking Water Filtration

12．Industrial Water Filtration

13．Industrial Coolant Filtration
