Product Details
Grade DD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.
Grade PD - High Efficiency Oil Removal Filtration
Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).
Grade QD - Activated Carbon Filtration
Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).
Grade DDp - General Purpose Dust Filtration
Dust particle removal down to 1 micron.
Product features
1.We use imported depthype filter material,tapered pore structure,gradient filter,can intercept granule furthest, to extend the service life.
2.We use hightech support materials.Hightech support materials can not only play the role of support filter, material and avoiding compressive deformation,but also protect the materials from being damaged during processing.
3.We also use the special spiral wrapping belts,so thar filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.
Product parameters
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Place of Origin: |
Henan, China |
Brand Name: |
LVDA |
Type: |

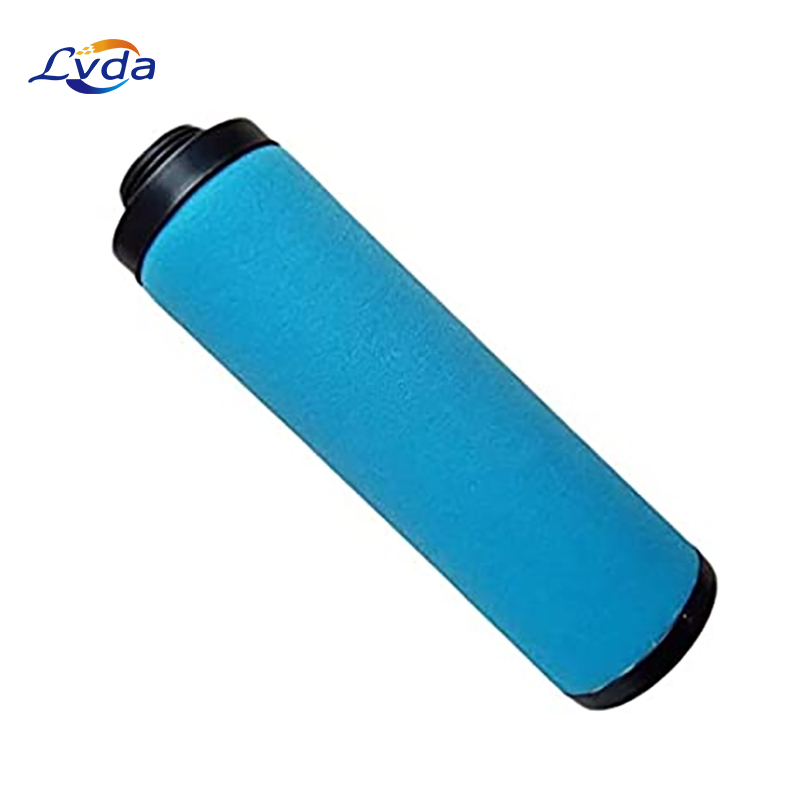

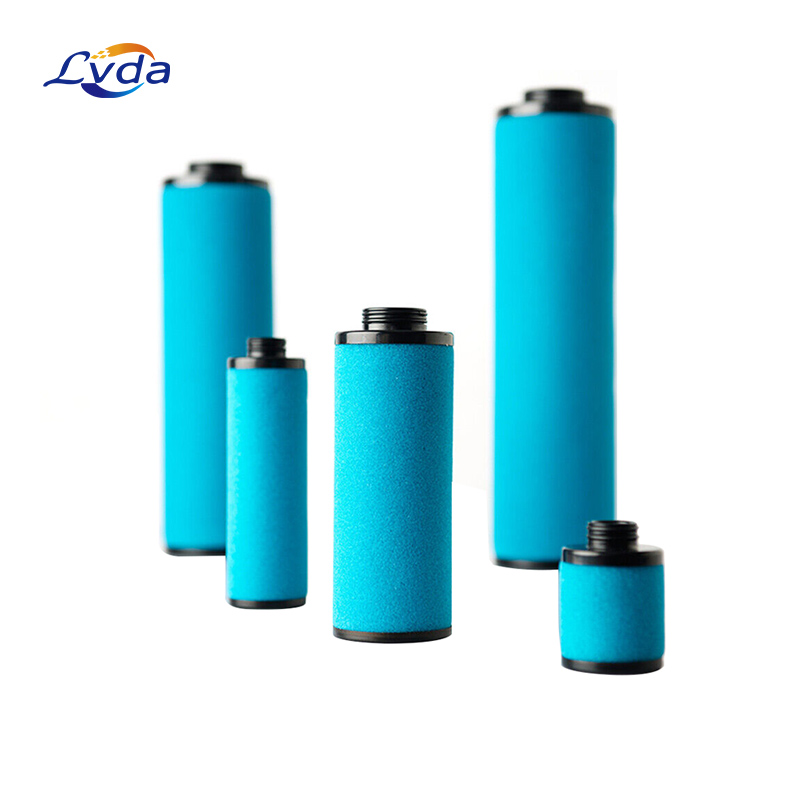

Air Filter,precision filter element |
Application: |
In-line Compressed Air Filter |
Certificate: |
ISO9001:2015 |
Material: |
fiberglass imported from HV&Ahlstrom company.wire mesh /Stainless steel |
Pressure: |
High Pressure |
Filtration Efficiency: |
0.9999 |
Life cycle: |
> 6000 hours |
Filtration Precision: |
1 Micron |
FILTER SIZE
DD/PD | Nominal capacity | Reference pressure | Maximum pressure | Connections | Dimensions | Free spacefor cartridge replacement | Weight |
Standard | + | Standard | + | A | B | C | D |
l/s | cfm | l/s | cfm | bar(e) | psig | bar(e) | psig | in | mm | in | mm | in | mm | in | mm | in | kg | lbs |
25 | 20+ | 25 | 53 | 20 | 42 | 7 | 102 | 20 | 290 | 1/2 | 90 | 3.5 | 61 | 2.4 | 268 | 10.6 | 75 | 2.9 | 1.1 | 2.4 |
45 | 35 | 45 | 95 | 35 | 74 | 7 | 102 | 20 | 290 | 1/2 | 90 | 3.5 | 61 | 2.4 | 323 | 12.7 | 75 | 2.9 | 1.3 | 2.9 |
215 | 170+ | 215 | 456 | 170 | 360 | 7 | 102 | 20 | 290 | 1-1/12 | 140 | 5.5 | 105 | 4.1 | 603 | 23.7 | 100 | 3.9 | 4.5 | 9.9 |
970F | 850+F | 970 | 2055 | 850 | 1801 | 7 | 102 | 16 | 232 | DN100 | 510 | 20.1 | 230 | 9.1 | 1360 | 53.5 | 1500 | 59.1 | 141 | 310.9 |
Product application
1.Power plant
2.Steel mill
3.Subway engineering
4.Chemical factory
5.Ship
6.Paper mill
