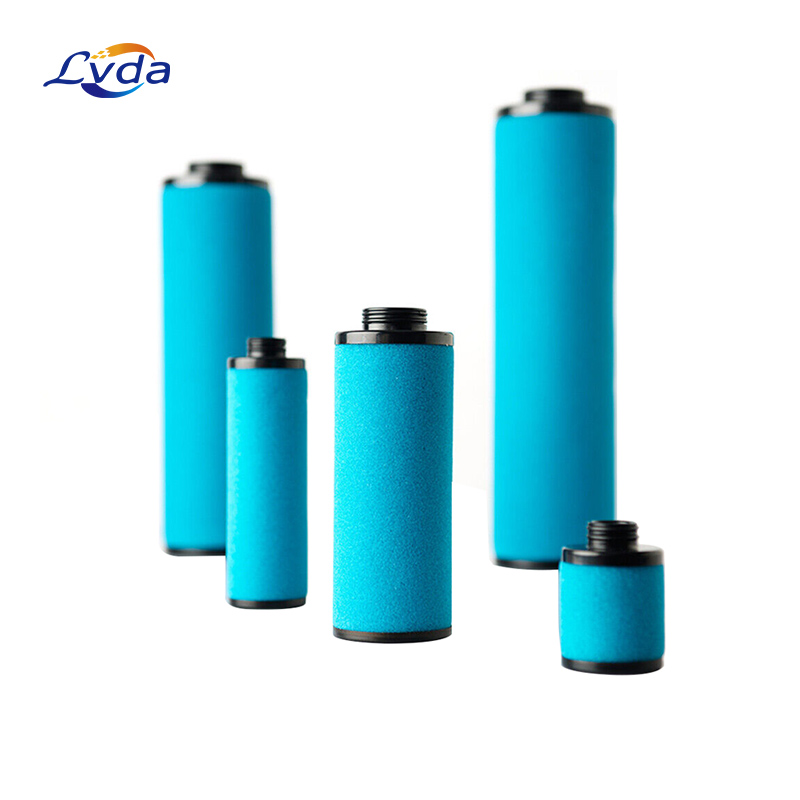

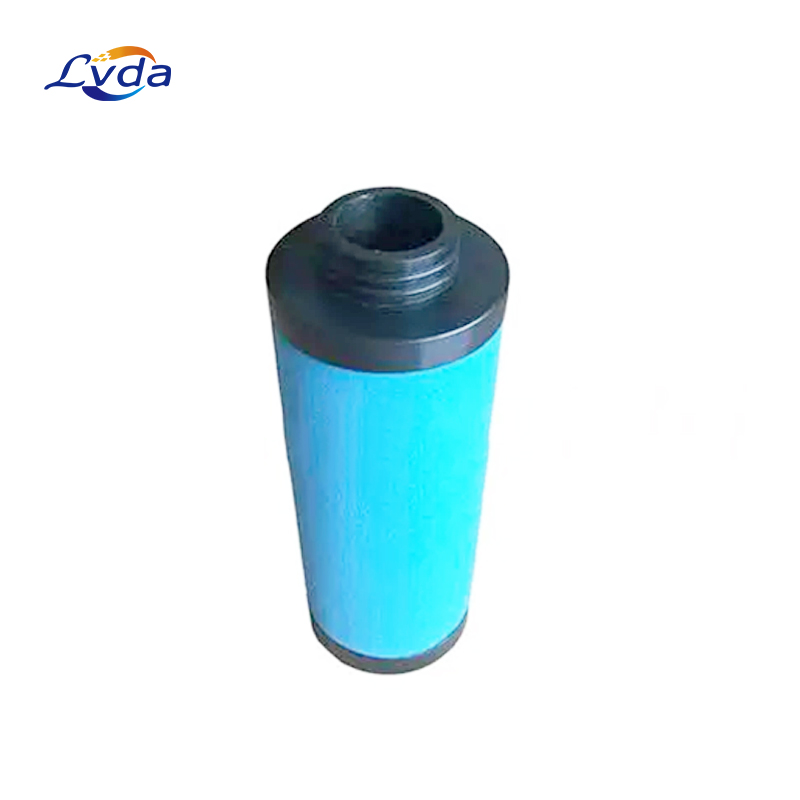

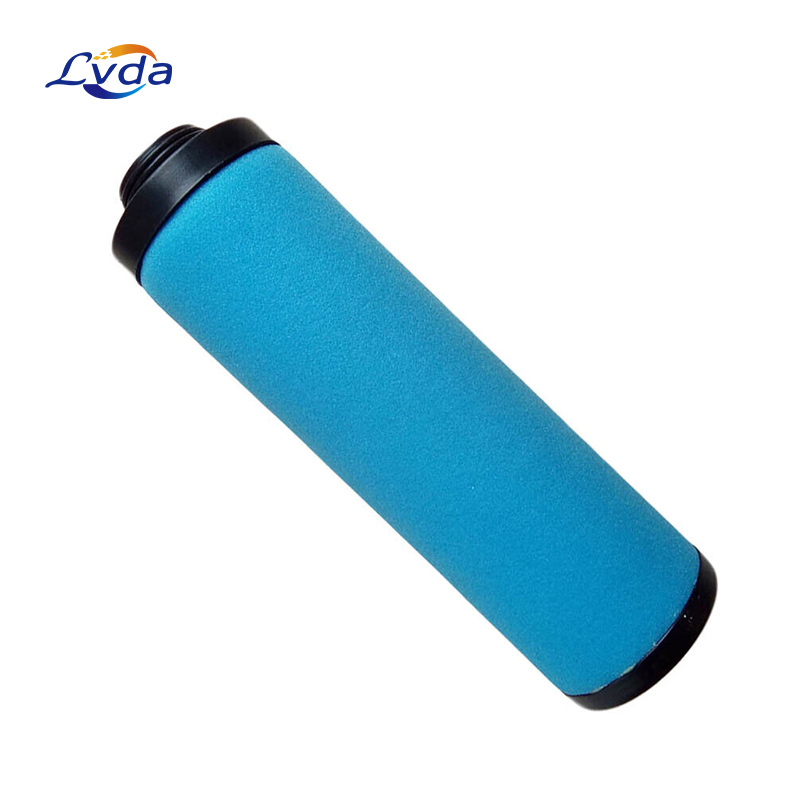

Replace For Atlas Copco screw air compressor filter element DDX11 （PDX11 QDX11） Air-Compressor Part

Product Details

In any conditions, Untreated air contains a lot of impurities, such as: oil, water, solid particles and so on. If you do not remove these impurities, it will affect the life of equipment, and even threaten the normal operation of the system. So precision filtering of the air is particularly important.

LVDA precision filter uses multi-layer filter materials,which includes borosilicate fibrous layer,glass fiber layer,activated carbon fiber layer,multi-layer stainless steel mesh layer.It can achieve high quality air without oil and impurities.

Grade DD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.

DD(+) filters efficiently reduce oil aerosol,wet dust and water drops in your compressed airstream. These could come from the lubrication of the compressor element, the intake air, and the compressor installation itself. These innovative filtration solutions are engineered to cost-effectively provide the best air purity and meet today's increasing quality demands.

Grade PD - High Efficiency Oil Removal Filtration

Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).

Grade QD - Activated Carbon Filtration

Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).

Grade DDp - General Purpose Dust Filtration

Dust particle removal down to 1 micron.

TEST STANDARD:

Our filter elements are tested according to ISO 2943

Compatibility with suction fluids ISO 3968

Flow characteristics ISO/DIS 3724

Flow fatigue characteristics ISO/DIS 4572

Filter performance test (Multi-pass test) ISO 2942

Proof of integrity and quality (Bubble point test) ISO 3723

Verifiion of the end cap stress ISO 2941

Collapse / burst pressure verifiion

Product features

1.Product compatibility 100%

2.US imported raw materials (H&V) micro glass fiber media filter,

3.Effective cost of more than 8000 hours, reducing maintenance cost,

4.Ensure compliance with original manufacturing requirements standards, better separation and better air

5.The packaging can be customized according to your needs

Product parameters

Product application

1.Hotels,

2.Garment Shops,

3.Building Material Shops,

4.Manufacturing Plant,

5.Machinery Repair Shops,

6.Food & Beverage Factory,

7.Farms, Restaurant,

8.Home Use,

9.Retail,

10.Food Shop,

11.Printing Shops,

12.Construction works ,

13.Energy & Mining,

14.Food & Beverage Shops,

15.Advertising Company
