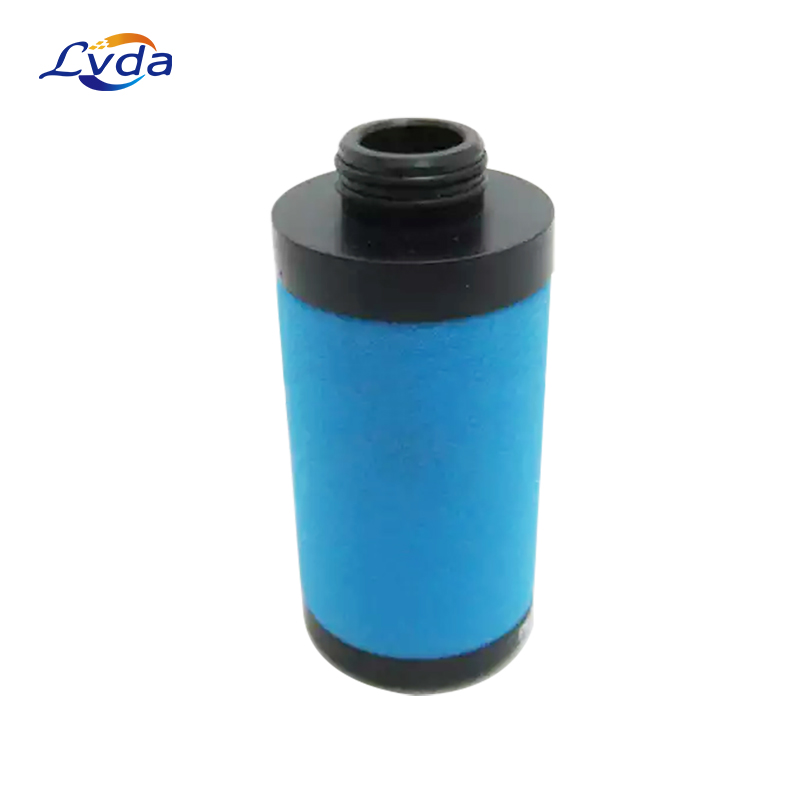

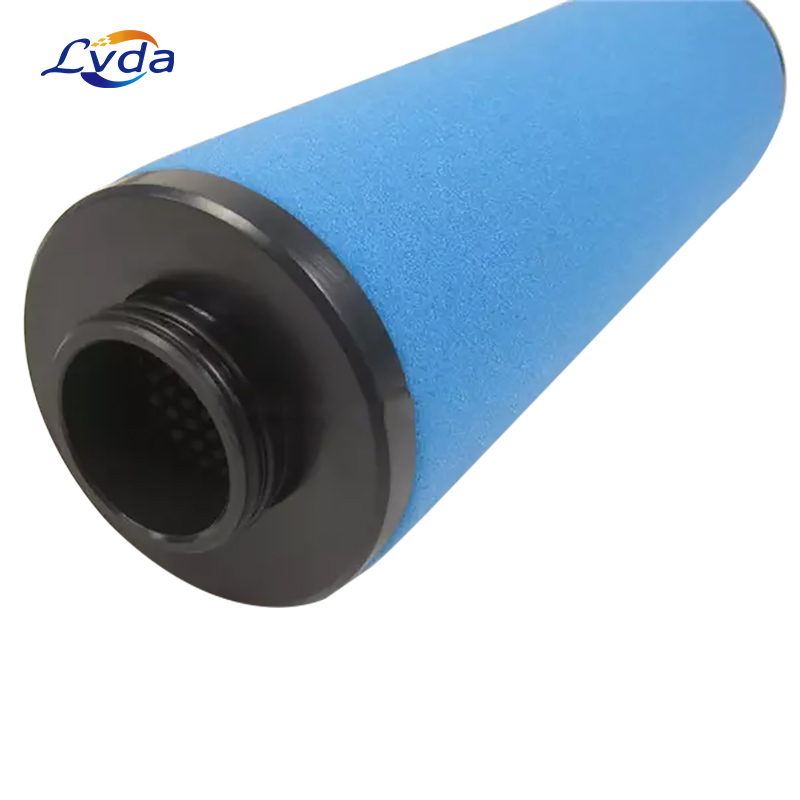

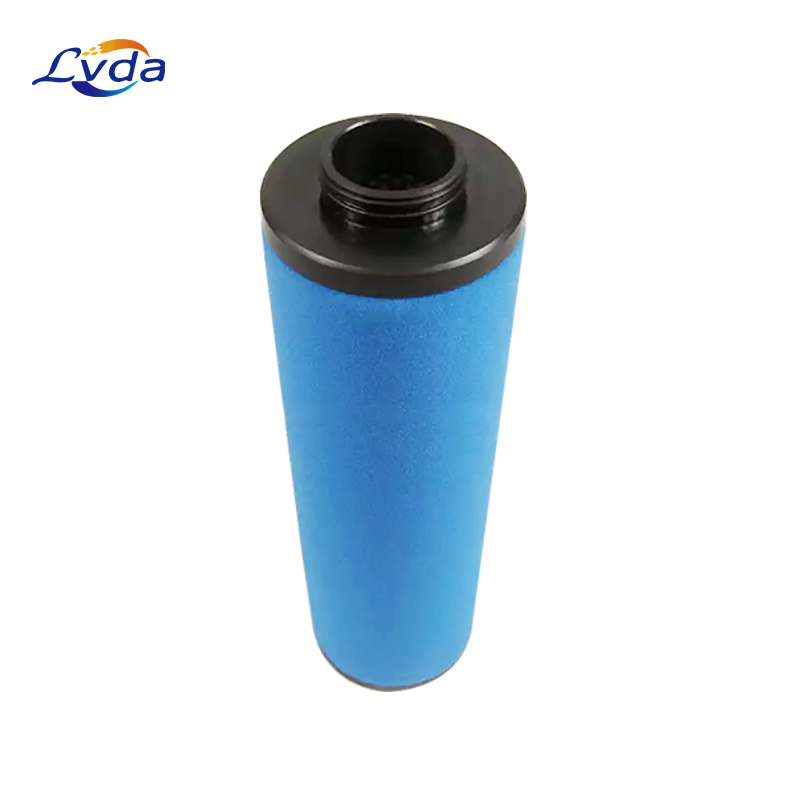

Replace ATLAS COPCO blue sponge air compressor pipeline precision filter element QD45( DD45 PD45 )

Product Details

Grade DD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.

Grade PD - High Efficiency Oil Removal Filtration

Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).

Grade QD - Activated Carbon Filtration

Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).

Grade DDp - General Purpose Dust Filtration

Dust particle removal down to 1 micron.

TEST STANDARD:

Our filter elements are tested according to ISO 2943

Compatibility with suction fluids ISO 3968

Flow characteristics ISO/DIS 3724

Flow fatigue characteristics ISO/DIS 4572

Filter performance test (Multi-pass test) ISO 2942

Proof of integrity and quality (Bubble point test) ISO 3723

Verifiion of the end cap stress ISO 2941

Collapse / burst pressure verifiion

Product features

1.We use imported depthype filter material,tapered pore structure,gradient filter,can intercept granule furthest, to extend the service life

.2.We use hightech support materials.Hightech support materials can not only play the role of support filter, material and avoiding compressive deformation,but also protect the materials from being damaged during processing.

3.We also use the special spiral wrapping belts,so thar filter layers can be connected firmly.Stationary pleated distance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.

Product parameters

Product application

1.metallurgy

2.petrifaction

3.steel mill

4.Power plant

5.pharmacy

6.chemical industry
