Product Details

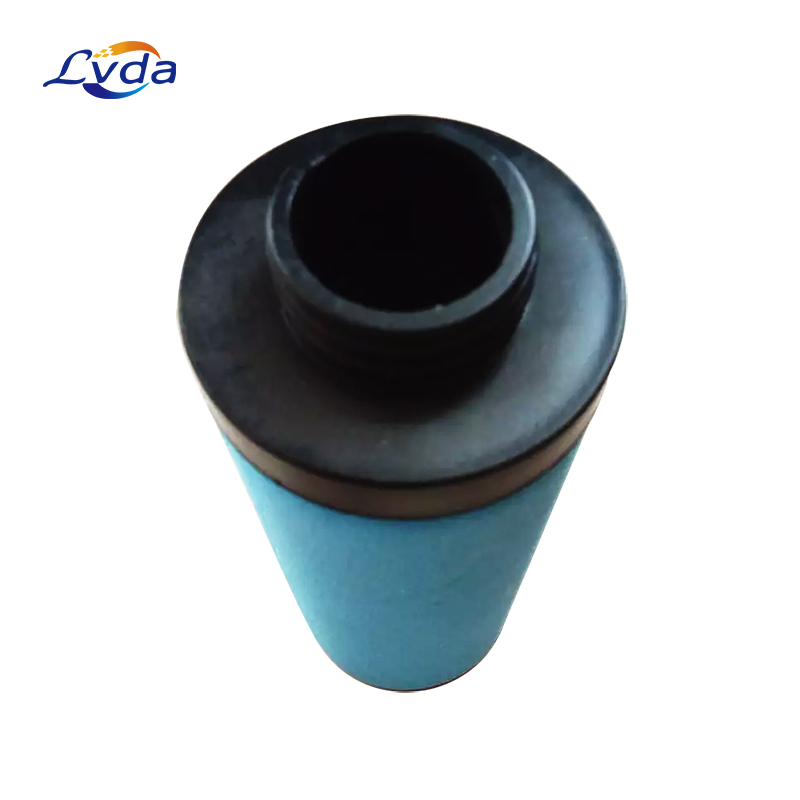

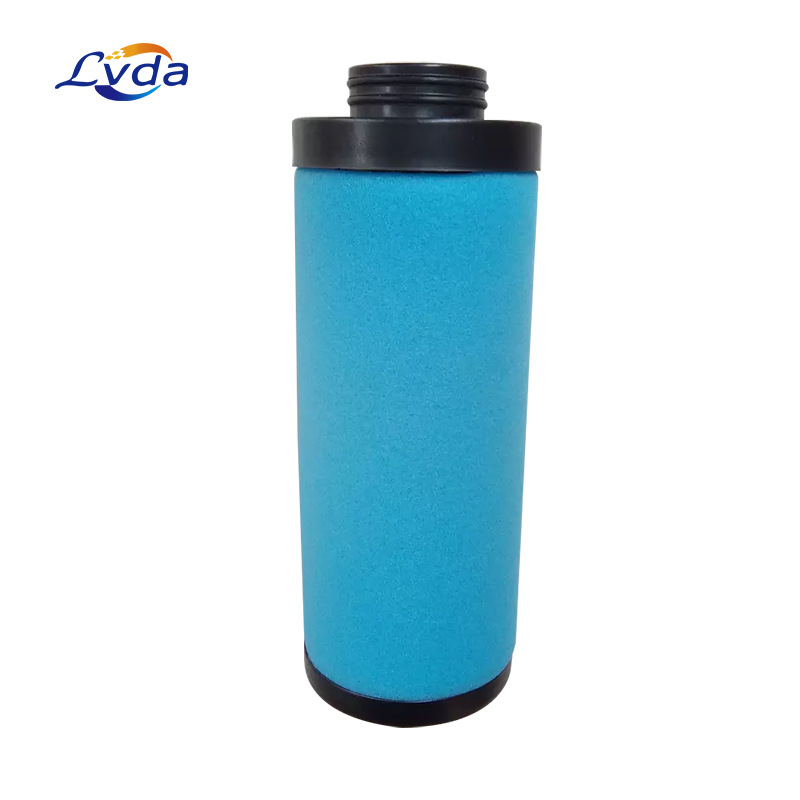

Coalescing (Pre-Filter) Filters Often called the pre-filter since itis placed on the air line just prior to the air dryer, a coalescingfilter removes oil, particles and moisture before it can come incontact with the desiccant in the dryer and ruin it.? Our Coalescing Filter Replacementscome with a manufacturer's warranty that matches or exceeds theoriginal OEM warranty. Original equipmentmanufacturer (OEM) names are the trademarks of each manufacturer.On products marked "replacement," OEM names and part numbers arefor reference only. eIndustrialSolutions is anindependent supplier of aftermarket compressor replacement partsand is not affiliated with manufacturers mentioned in this website. Original equipment manufacturer (OEM) names are thetrademarks of each manufacturer. On products marked "equivalent" or"replacement," OEM names and part numbers are for referenceonly.
Product features
1.Maximum oil aerosol, wet dust and water droplet filtration and drainage
High- efficient glass fiber and foam media.
2.Significant energy savings & limited system operating costs
Optimal design and filter media allow low pressure losses.
3.High reliability
High- performance stainless steel cores, double O-rings,epoxy sealed caps, and anti-corrosive coated filter housing.
4.Easy maintenance
External ribs on the threaded housing,or a rotating bottom cover for the welded housings,and push-on elements.
5.Monitoring of energy use
Differential pressure indication (indicator for sizes 10-35 I/s,gauge for sizes 50 -8000 I/s) loptional for standard range).
Product parameters
Filtration Type | High Efficiency Filtration |
Maximum Oil Carryover | 0.01 ppm Oil Removal |
Micron Rating | 0.01 Micron |
Product Type | Aftermarket/Replacement |
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Place of Origin: |
Henan, China |
Brand Name: |
LVDA |
Type: |
Air Filter |
Application: |
Atlas Copco Air Compressor |
Certificate: |
ISO9001:2015 |
Material: |
fiberglass imported from HV&Ahlstrom company.wire mesh etc |
Service life: |
> 6000 hours |
Pressure: |
High Pressure |
Filtration Efficiency: |
99.99% |
Life cycle: |
> 6000 hours |
FILTER SIZE
DD/PD | Nominal capacity | Reference
pressure | Maximum
pressure | Connections | Dimensions | Free space
for cartridge
replacement | Weight |
Standard | + | Standard | + | A | B | C | D |
l/s | cfm | l/s | cfm | bar(e) | psig | bar(e) | psig | in | mm | in | mm | in | mm | in | mm | in | kg | lbs |
45 | 35 | 45 | 95 | 35 | 74 | 7 | 102 | 20 | 290 | 1/2 | 90 | 3.5 | 61 | 2.4 | 323 | 12.7 | 75 | 2.9 | 1.3 | 2.9 |
215 | 170+ | 215 | 456 | 170 | 360 | 7 | 102 | 20 | 290 | 1-1/12 | 140 | 5.5 | 105 | 4.1 | 603 | 23.7 | 100 | 3.9 | 4.5 | 9.9 |
970F | 850+F | 970 | 2055 | 850 | 1801 | 7 | 102 | 16 | 232 | DN100 | 510 | 20.1 | 230 | 9.1 | 1360 | 53.5 | 1500 | 59.1 | 141.0 | 310.9 |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms, Restaurant,
8.Home Use,
9.Retail,
10.Food Shop,
11.Printing Shops,
12.Construction works ,
13.Energy & Mining,
14.Food & Beverage Shops,
15.Advertising Company
