Product Details
Grade DD - General Purpose Protection Particle removal down to 1 micron including coalesced liquid water and oil, providing a maximum remaining oil aerosol content of 0.6 mg/m3 (<0.5 ppm) @ 21°C.
Grade PD - High Efficiency Oil Removal Filtration
Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 mg/m3 (<0.01 ppm) @ 21°C. (Precede with Grade GP filter).
Grade QD - Activated Carbon Filtration
Oil vapour and hydrocarbon odour removal, giving a maximum remaining oil content of <0.003 mg/m3 (<0.003 ppm) (excluding methane) @ 21°C. (Precede Grade AC with Grade HE filter).

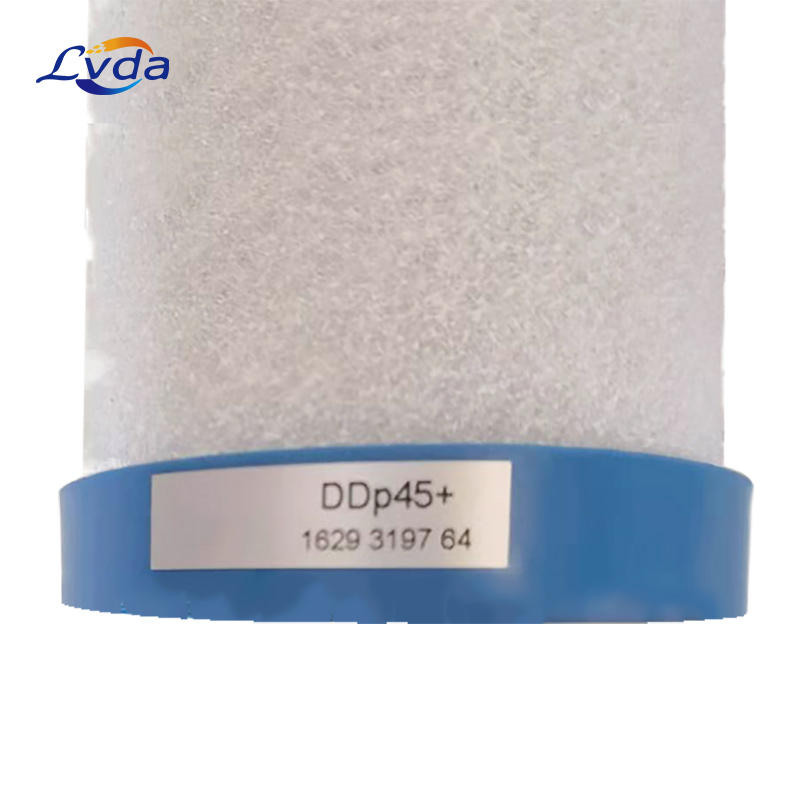

Grade DDp - General Purpose Dust Filtration
Dust particle removal down to 1 micron.
Optimal dry dust filtration
DDp(+) and PDp(+) filters efficiently prevent dust,particulates and micro-organisms arising from corrosion, dirt and adsorption materia! from entering your compressed air stream. These innovative filtration
solutions are engineered to cost-effectively provide the best air purity and meet today's increasing quality demands.
TEST STANDARD:
Our filter elements are tested according to ISO 2943
Compatibility with suction fluids ISO 3968
Flow characteristics ISO/DIS 3724
Flow fatigue characteristics ISO/DIS 4572
Filter performance test (Multi-pass test) ISO 2942
Proof of integrity and quality (Bubble point test) ISO 3723
Verifiion of the end cap stress ISO 2941
Collapse / burst pressure verifiion
Product features
1.Maximum oil aerosol, wet dust and water droplet filtration and drainage
High- efficient glass fiber and foam media.
2.Significant energy savings & limited system operating costs
Optimal design and filter media allow low pressure losses.
3.High reliability
High- performance stainless steel cores, double O-rings,epoxy sealed caps, and anti-corrosive coated filter housing.
4.Easy maintenance
External ribs on the threaded housing,or a rotating bottom cover for the welded housings,and push-on elements.
5.Monitoring of energy use
Differential pressure indication (indicator for sizes 10-35 I/s,gauge for sizes 50 -8000 I/s) loptional for standard range).
Product parameters
Name | DDp+ | PDp+ | DD+ | PD+ | UD+ | QD+ |
DDp | PDp | DD | PD | QD |
Grade | Rough | Fine | Rough | Fine | Ultimate | Basic |
Contaminant | Dry dust | Oil aerosol/wet dust | Oil vapor |
Grade | Filtration rating | Oil content |
DD | 1µ | 1ppm |
DDP | 1µ | dust removal |
PD | 0.01µ | 0.01ppm |
QD | 0.01µ | 0.003ppm (activated carbon) |
Place of Origin: |
Henan, China |
Brand Name: |
LVDA |
Type: |
Air Filter,precision filter element |
Application: |
Atlas Copco Air Compressor |
Certificate: |
ISO9001:2015 |
Material: |
fiberglass imported from HV&Ahlstrom company.wire mesh /Stainless steel |
Pressure: |
High Pressure |
Filtration Efficiency: |
0.9999 |
Life cycle: |
> 6000 hours |
Filtration Precision: |
1 Micron |
Product application
1. Construction machinery industry: excavator, loader, roller, rotary drilling rig, paver
2. Power industry: generator sets, mobile power stations
3. Petrochemical industry: fuel dispensers, oil tankers, mobile fuel tankers
4. Mechanical processing equipment: various mechanical hydraulic system filters such as machining center, lathe, milling machine, bending machine, etc
5. Agricultural machinery: harvester, tractor, lawn mower
6. Transport vehicles: heavy trucks, mixer trucks, buses, sprinklers
7. Ships
