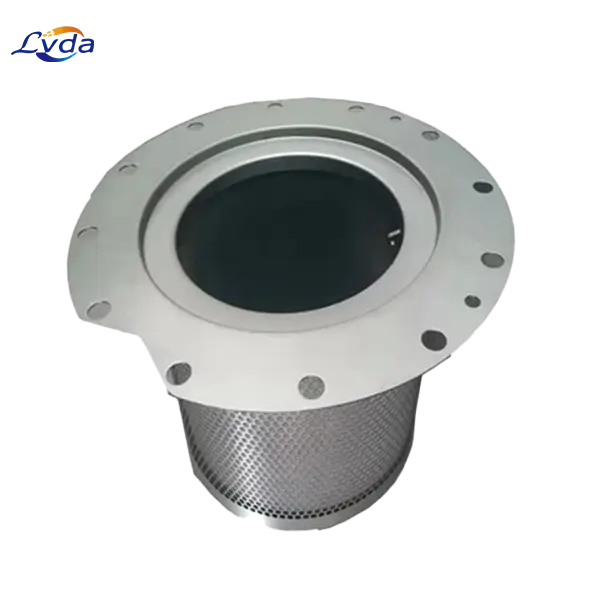

1094805800 Air Oil Separator

Product Details

1094805800 is the part number for the oil-air separator element used on screw-type air compressors.

Application: Specifically engineered for Screw Air Compressors, primarily fitting mid-to-large scale models including GA90, GA110, and GA132 / GA132VSD.

Specifications

Filter Media: High-precision fiberglass

Initial Pressure Drop: ≤ 0.02 MPa

Residual Oil Content: < 3 ppm

Maximum Design Temperature: 90°C

Service Life: 3,500 to 4,000 working hours

Installation Mode: Vertical placement inside the oil separator vessel
