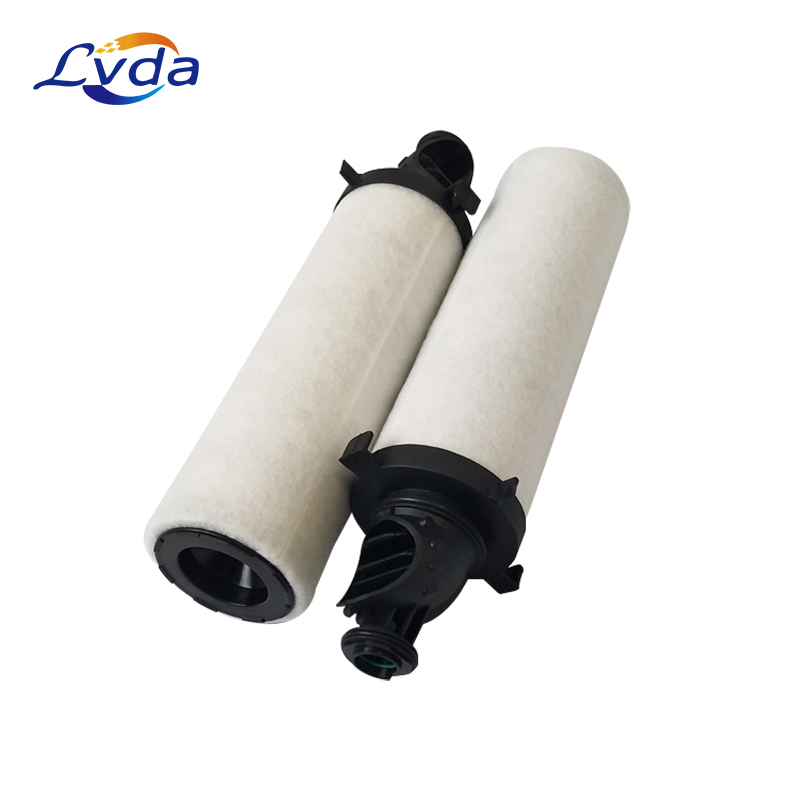

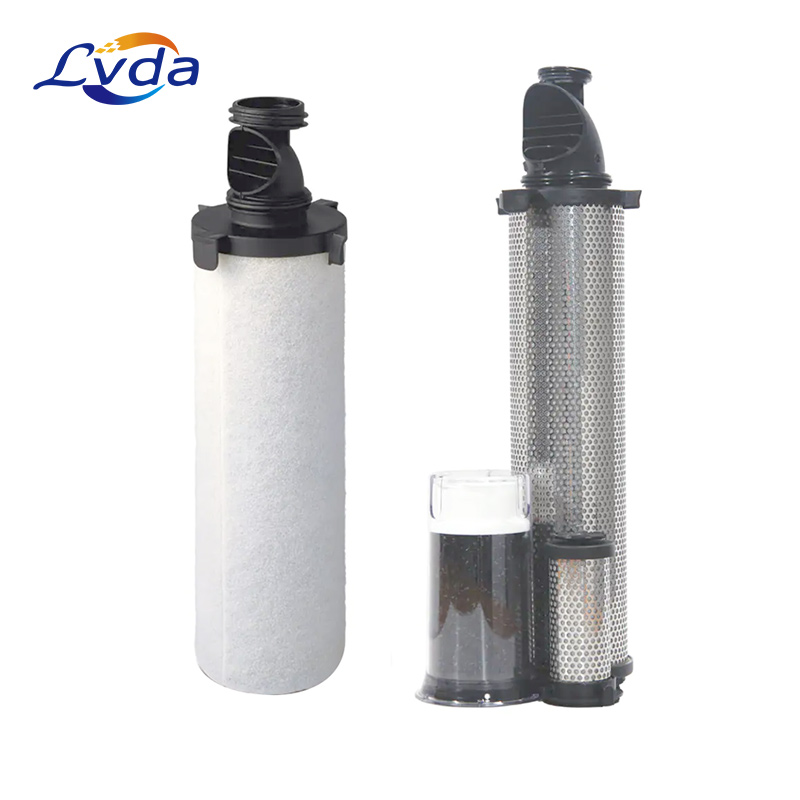

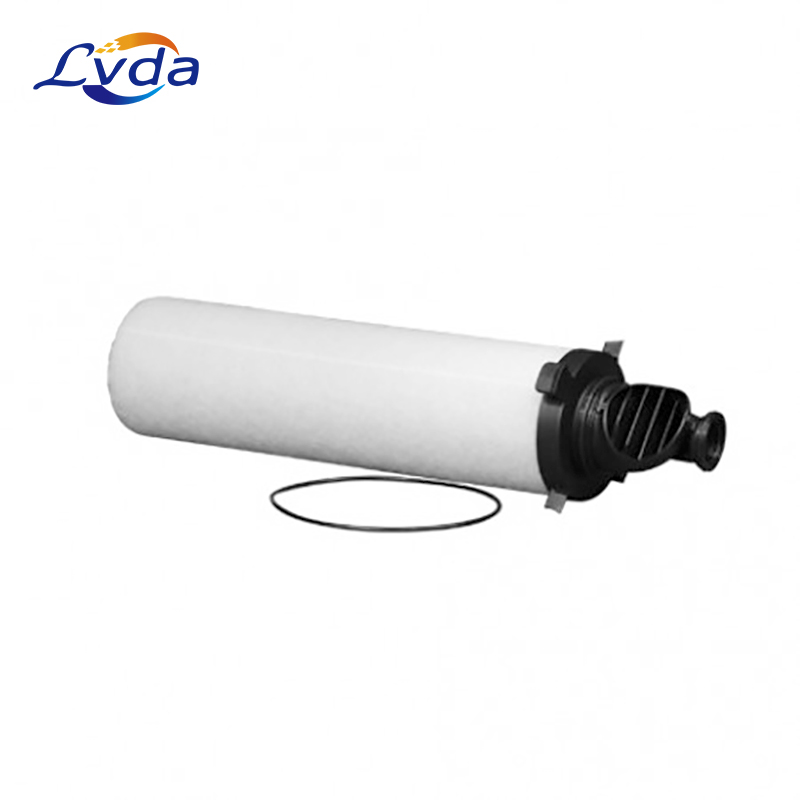

Replacement Elements 050AA High capacity high pressure compressor precision line filter
Replacement Elements 050AA High capacity high pressure compressor precision line filter
Replacement Elements 050AA High capacity high pressure compressor precision line filter
Replacement Elements 050AA High capacity high pressure compressor precision line filter

Replacement Elements 050AA High capacity high pressure compressor precision line filter

Replacement for Atlas Copco filter

Model Number: 050AA

Diameter: : 108.00 mm

Height: : 458.00 mm

Differential pressure dry: : 80 mbar

Differential pressure wet: : 190 mbar

Particle retention: : 0.01 µm

Get Quotation

Product Details

AO High-efficiency general protection:

Remove dust particles larger than 1 micron, water mist and oil mist.

The maximum oil mist content does not exceed: 0.5mg/m3 (at 21ºC)/0.5ppm(w) (at 70ºF)

AA High-efficiency oil removal filter:

(AO grade filter must be equipped in front) To remove dust particles larger than 0.01 microns and water mist and

Oil mist, the maximum oil mist content does not exceed 0.01mg/m3 (at 21ºC)/0.01ppm(w) (at 70ºF)


Product features

1. The filtering speed of precision filter is fast, generally 40m/h, up to 60m/h, more than 3 times that of ordinary sand filter;

2. The precision filter has a large sewage holding capacity, which is generally 15~35kg/m3, more than 4 times that of the ordinary sand filter;

3. The backwashing water consumption rate of precision filter is low, and the backwashing water consumption is less than 1-2% of the periodic filtering water;

4. The precision filter covers a small area with the same water volume, and the floor area is less than 1/3 of that of the ordinary sand filter;

5. The precision filter has strong adjustability, and the parameters such as filtering accuracy, sewage interception capacity, filtering resistance can be adjusted as required.


Product parameters


Model:

050AA

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

1800-2000h

Certificate:

ISO9001

Quality:

100%  Tested

Working  temperature:

-10~+100

Working  pressure:

-21~210  bar

Maximum  Oil Carryover

0.01  ppm Oil Removal

Micron  Rating

0.01  Micron

Filter  Connector

Flat  Connector

End  cap material:

Plastic

Diameter:

108.00  mm

Height:

458.00  mm

Differential  pressure dry:

80  mbar

Differential  pressure wet:

190  mbar

Operating  temperature Min.:

1,5  °C

Operating  temperature Max.:

65  °C

Flow  direction:

Inside  to outside

Grade:

S

Solid  class:

1

Oil  class:

1

Particle  retention:

0.01   µm

Particle  retention rate ISO:

99.98%

Residual  oil content:

0.01  mg/m³

Product application

1.Chemical and petrochemical industry

2.Pharmaceutical industry

3.Prefiltration of sterile filters

4.Filling machines

5.Food & beverage industry

6.Packing machines

7.Process industry
