Product Details

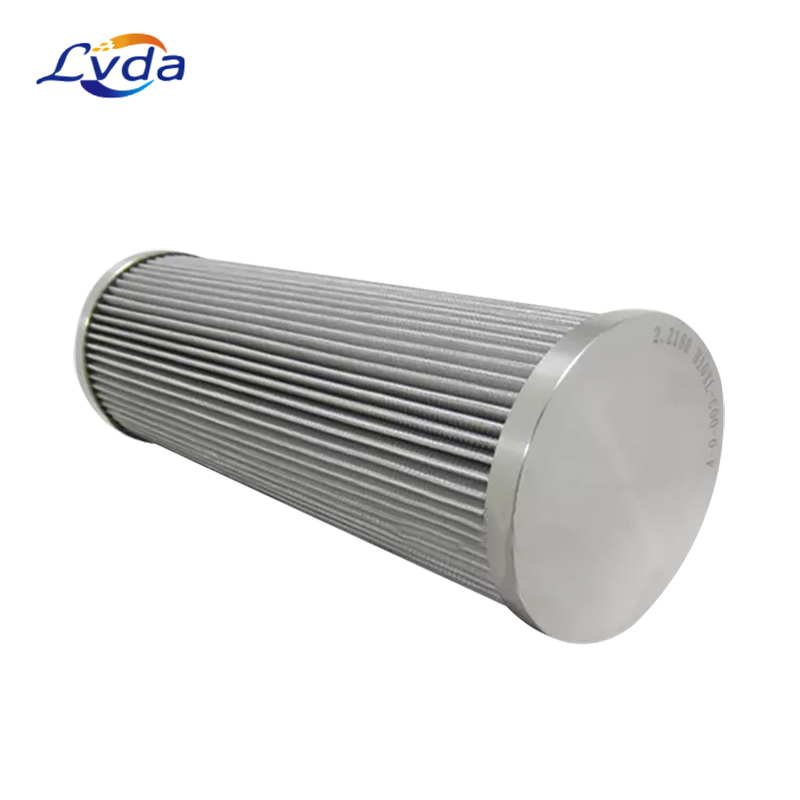

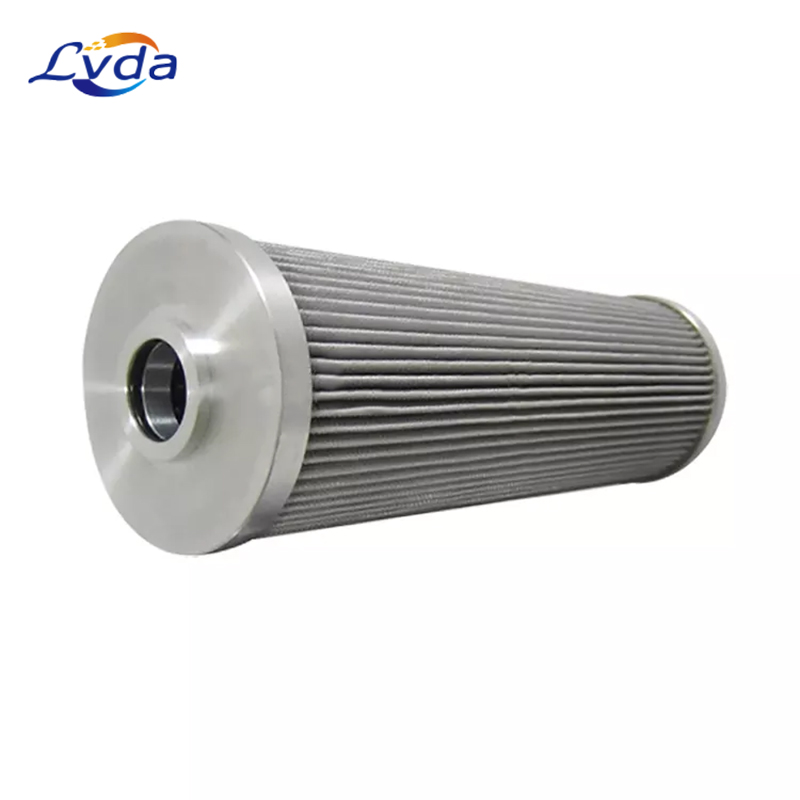

2.Z180H10XL-C00-0-U series filter element are used in hydraulic system to filter solid particles and colloidal substances in the working medium,effectively contol the pollution degree of the working medium ,so as to ensure the normal operation of equipment.This series filter element are made of international standard precision glass fiber material, and fixed by the support network, deep folding process, filter precision grade can be freely selected，suitable for different pressure oil suction system, oil return system, high and low pressure system, low maintenance cost, long service life.
Product features
1. Large flow capacity, low pressure loss
2. Large dust capacity, high precision filtration , long replacement period
3. Good temperature and corrosion resistance
4. Pleated material increase filtration area, and can be welded
5. High strength, even if strong vibration, the fiber does not fall off
Product parameters
Model: | 2.Z180H10XL-COO-O-U 21305442/20 R928025591 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 2000- 4000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Type: | Folding Microporous Filter |
Filter Connector: | Industry Use |
Filtration Grade: | Medium Filter |
Activated Carbon Filter Type: | Imported Hv |
Filter Connector | Metal End Caps |
Filtration Rating | 1-100 Micron |
Working pressure | 21bar - 210bar |
Working temperature | -20ºC-+100ºC |
O-ring material | Viton, NBR |
Working max pressure difference: | 0.4(Mpa) |
OD Top: | 3.07 |
OD Bottom: | 3.07 |
ID: | 0.95 |
Length: | 9.075 |
End Caps: | Corrosion Resistant Steel / Aluminum |
Center Tube: | Corrosion Resistant Steel |
Media: | Microglass Fiber Media |
Seal: | Viton (Fluorocarbon) |
Bypass Setting: | - |
Collapse Rating: | 3000 psid |
Filtration Rating: | Bx = 200 Bx[c] = 1000 |
Hydrafil# : | BF-REX-877351-L9-10MV |
Product application
1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, particle removal and filtration of oilfield well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronics and pharmacy: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.
5. Thermal power and nuclear power: purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system and compressed air purification of paper machinery, mining machinery, injection molding machines and large precision machinery, and dust recovery and filtration of tobacco processing equipment and spraying equipment.
7. Railway internal combustion engine and generator: filtering of lubricating oil and engine oil.
8. Automobile engine and construction machinery: air filter, oil filter, fuel filter for internal combustion engine, various hydraulic oil filters, diesel oil filters and water filters for construction machinery, ships and trucks.
